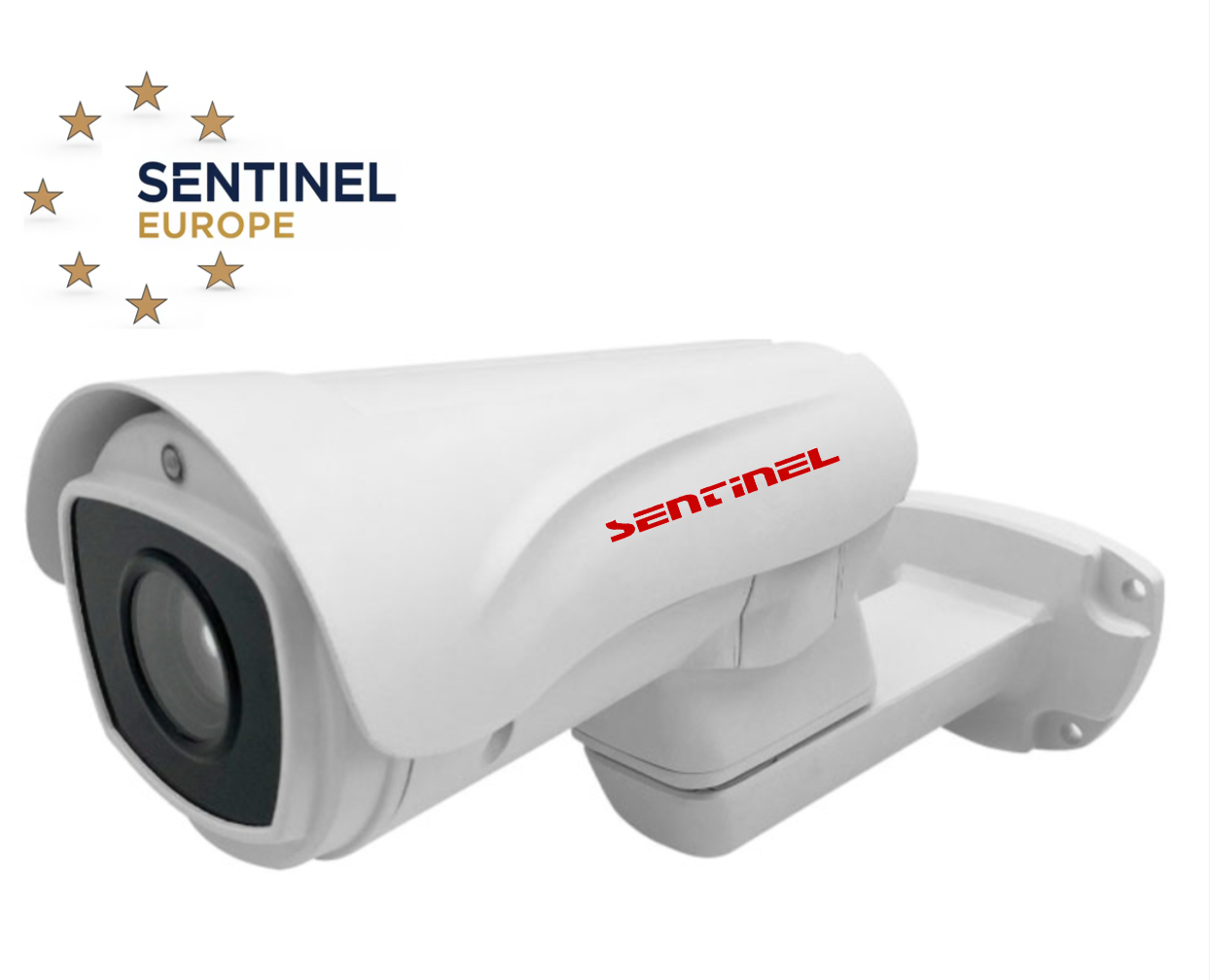

Bullet Camera 4X SentinelEurope

Model Nº: NST-IPC5305-4X

NST-IPC5305-4X

1/2.8" 5Megapixel IMX335 CMOS

Powerful 4x optical zoom 2.8-12mm Lens

IR distance up to 40-60m

Motion Detection

PTZ Support POE

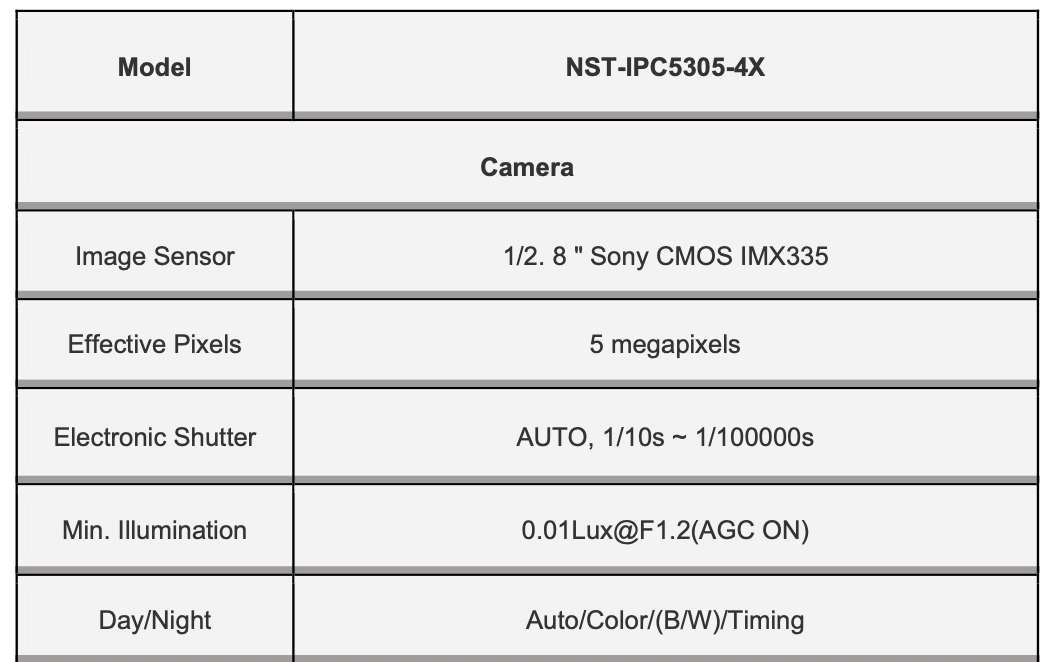

Camera

Image Sensor 1/2. 8 " Sony CMOS IMX335

Effective Pixels 5 megapixels

Electronic Shutter AUTO, 1/10s ~ 1/100000s

Min. Illumination 0.01Lux@F1.2(AGC ON)

Day/Night Auto/Color/(B/W)/Timing

WDR Digital WDR

White Balance Auto /Manual

BLC /HLC Support

DNR 2D /3D DNR

Other Image adjust , Fli

Encode

Video Standard H.264 / H.26 5 /Mjpeg

Video Resolution: MainStream: 5MP(2592x1944)/4MP/3MP/1080P/720P,etc.Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. Third stream: 1080P/720P/CIF @ 10fps

Video Bitrates: 512Kbps - 12Mbps, VBR/CBR

Audio Standard: G.711-u / G.711- a /AAC

Two-way audio: N/A

Smart Detection: Motion Detection

IR Led

IR Led: 4PCS IR LED+ 2PCS LED Laser

White lights: N/A

IR Distance: 40-60 M

W hite lights Distance: N/A

Lens

Focal length: 2.8-12 mm 4X Zoom

IRIS: F1.6~F2 2

View angle: 56°(wide) ~ 3.86°(tele)

Zoom: 4x optical zoom

Optional Function

High power PoE +

PTZ

Pan/Tilt Range: Pan: 0° ~ 180 °; Tilt: -45° ~ 40 °

Preset Point: 255

Control Speed: Pan: 0. 5 ° ~ 30° /s; Tilt: 0. 5 ° ~250° /s

A-B Scanning: Support

Auto Cruising: Support 1 groups patrol , Max. 32 presets in group

Power on Action: reset/Scan/Cruise

Power-off Recovery: Support

S mart Tracking: Motion Detection

Network Services

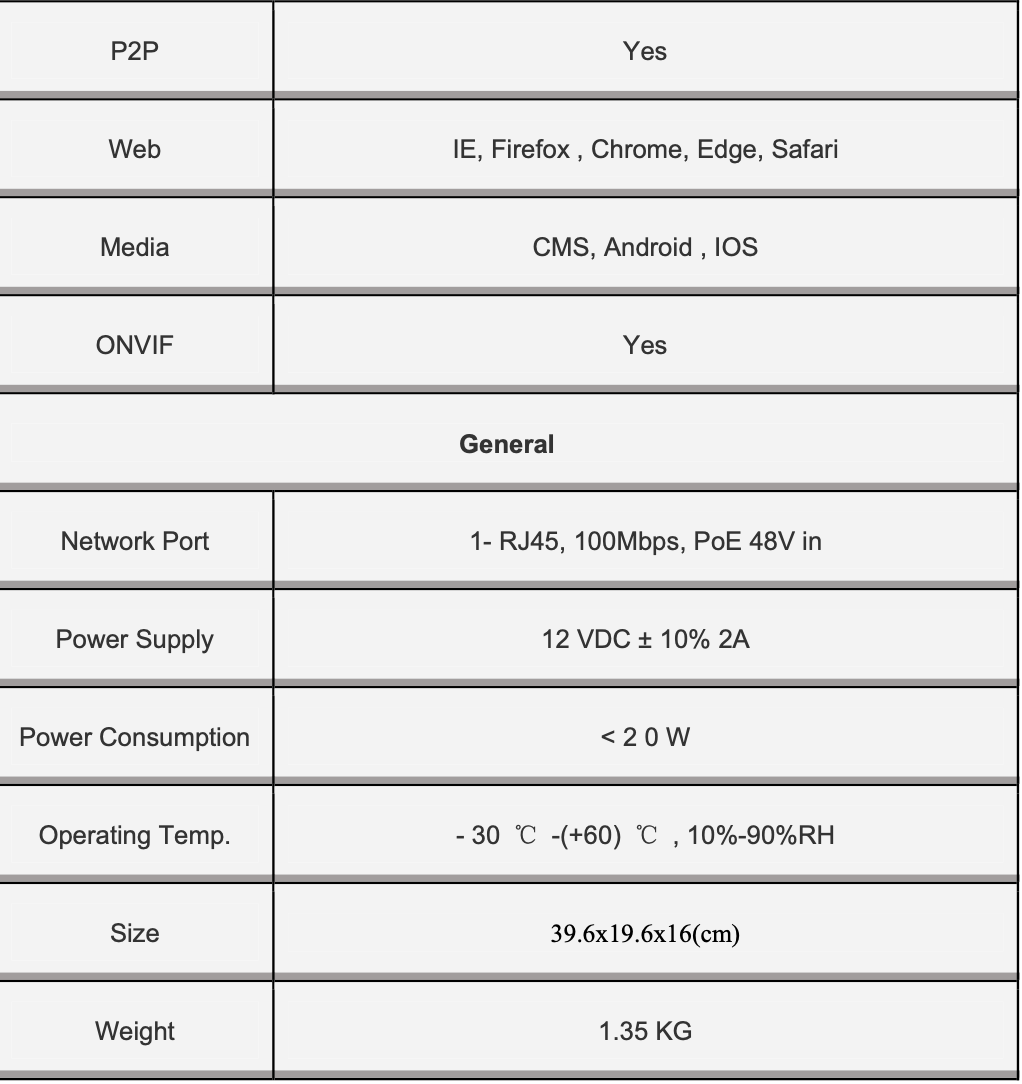

Protocol :HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFSP2P Yes

Web :IE, Firefox , Chrome, Edge, Safari

Media: CMS, Android , IOS

ONVIF: Yes

General

Network Port:1- RJ45, 100Mbps, PoE 48V in

Power Supply: 12 VDC ± 10% 2A

Power Consumption: < 2 0 W

Operating Temp.: - 30 ℃ -(+60) ℃ , 10%-90%RH

Size: 39.6x19.6x16(cm)
