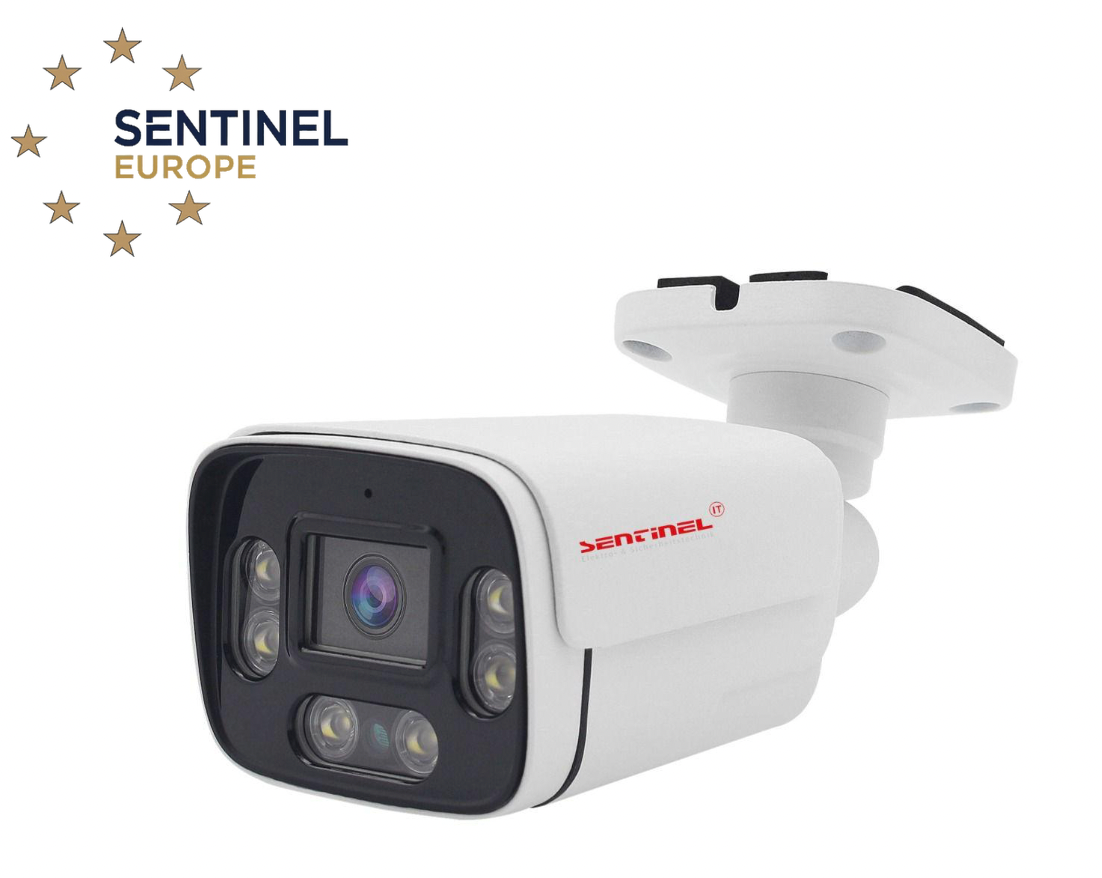

Bullet Camera Full Color SentinelEurope

Model Nº: NST-IPM6858E-FC

8MP IP POE Camera Bullet Full Color

Human/Vehicle Detection Built in mic

All-metal H.265 POE IP Camera

Compatible with Brand NVR, private protocol for connecting to Hikvision、Uniview NVR

Support Multi-frame Synthesis Optical Wide Dynamic Range(120DB)

Built-in POE, Built-in Mic, Full Color Warm Light LED

Support ONVIF standard protocol,ONVIF Profile-S,ONVIF Profile-T

Lens: 2.8mm @ F1.0--

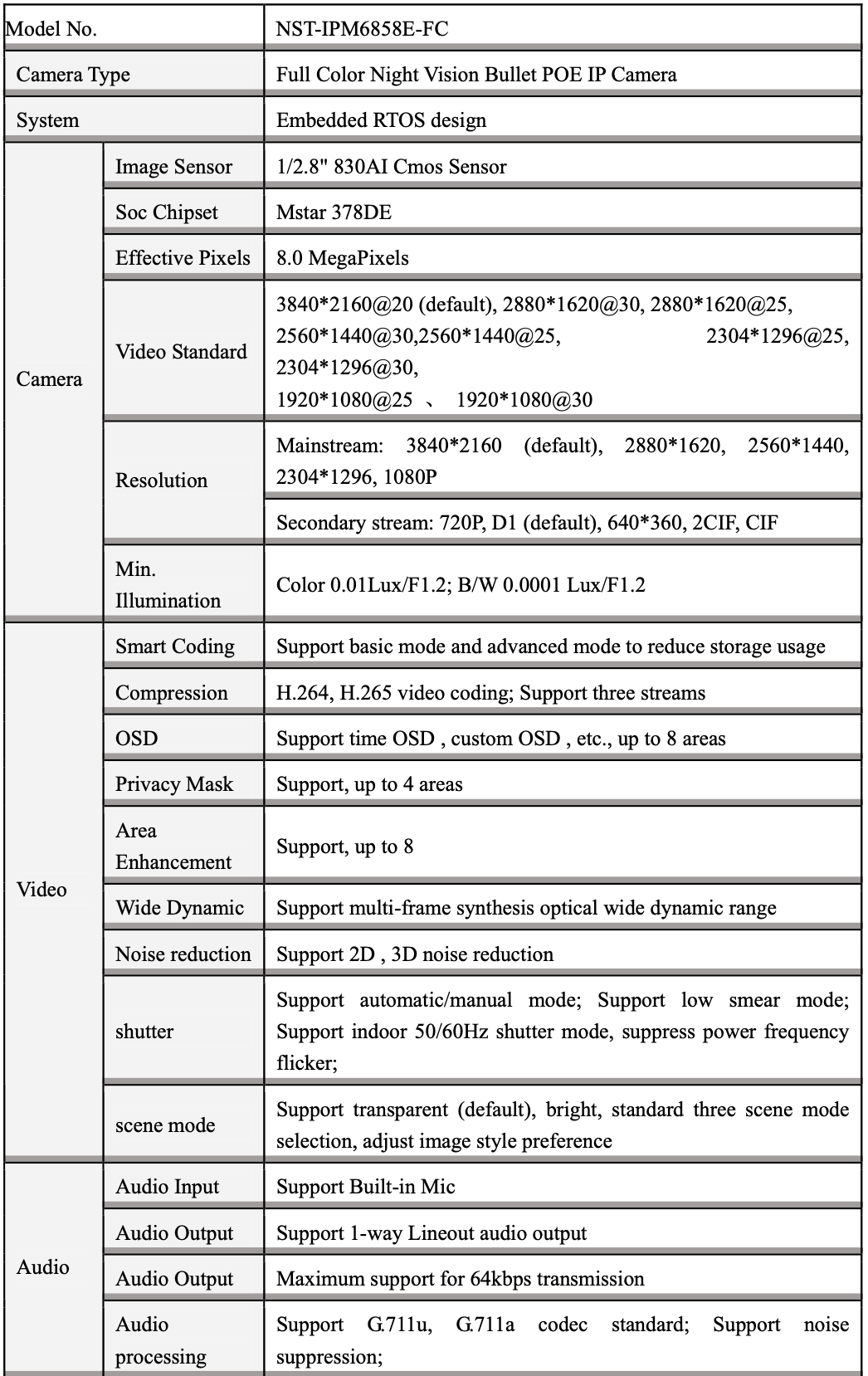

Camera

Camera Type:Full Color Night Vision Bullet POE IP Camera

System: Embedded RTOS design

Image Sensor: 1/2.8" 830AI Cmos Sensor

Soc Chipset: Mstar 378DE

Effective Pixels: 8.0 MegaPixels

Video Standard:

3840*2160@20 (default), 2880*1620@30, 2880*1620@25,

2560*1440@30,2560*1440@25, 2304*1296@25,

2304*1296@30,

1920*1080@25 、 1920*1080@30

Resolution

Mainstream: 3840*2160 (default), 2880*1620, 2560*1440,

2304*1296, 1080P

Secondary stream: 720P, D1 (default), 640*360, 2CIF, CIF

Min. Illumination: Color 0.01Lux/F1.2; B/W 0.0001 Lux/F1.2

Video

Smart Coding: Support basic mode and advanced mode to reduce storage usage

Compression. H.264, H.265 video coding; Support three streams

OSD: Support time OSD , custom OSD , etc., up to 8 areas

Privacy Mask :Support, up to 4 areas

Area Enhancement: Support, up to 8

Wide Dynamic: Support multi-frame synthesis optical wide dynamic range

Noise reduction: Support 2D , 3D noise reduction

shutter: Support automatic/manual mode; Support low smear mode; Support indoor 50/60Hz shutter mode, suppress power frequency flicker;

scene mode: Support transparent (default), bright, standard three scene mode

selection, adjust image style preference

Audio

Audio Input: Support Built-in Mic

Audio Output: Support 1-way Lineout audio output

Audio Output: Maximum support for 64kbps transmission

Audio processing: Support G.711u, G.711a codec standard; Support noise

suppression;

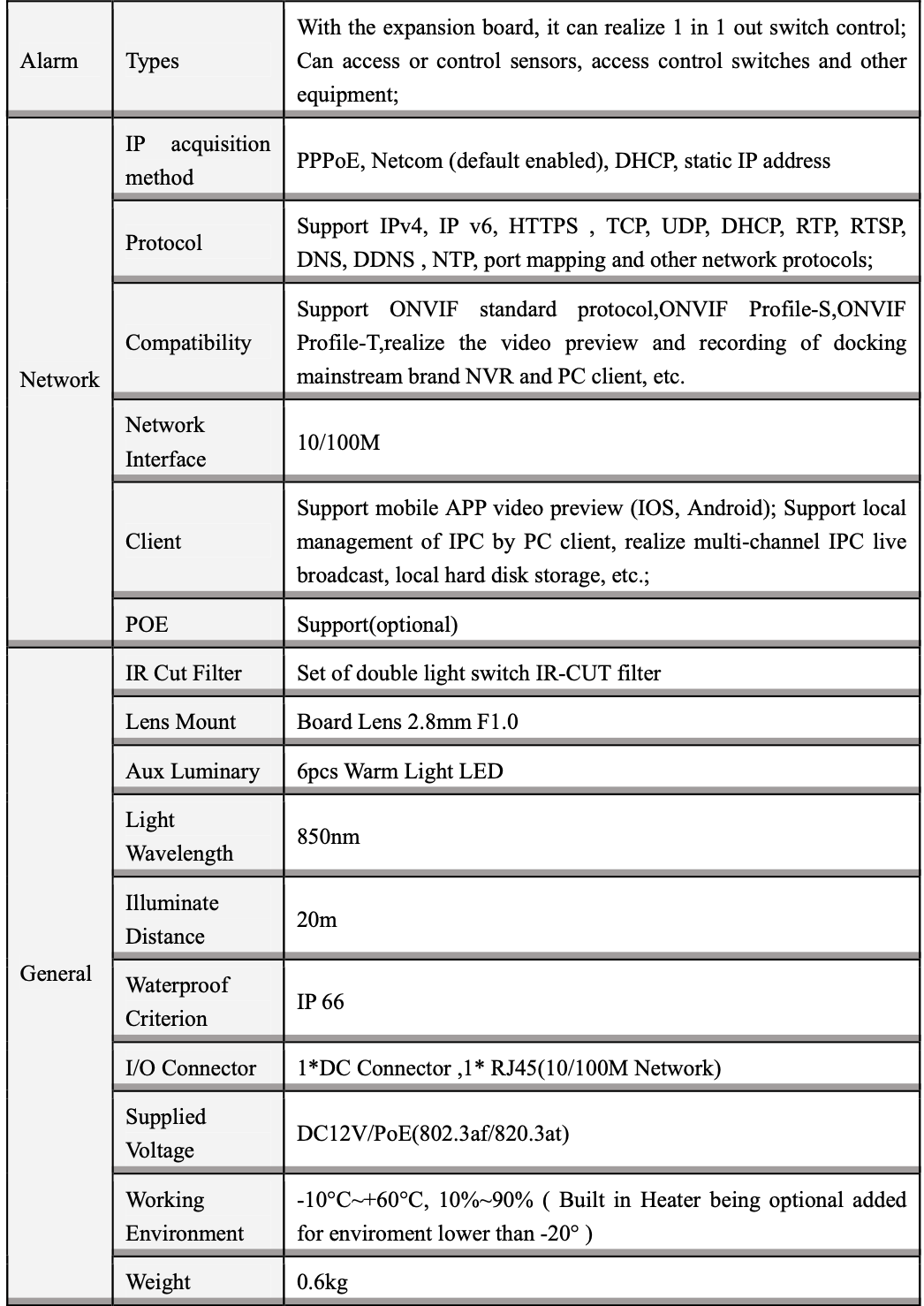

Alarm

Types: With the expansion board, it can realize 1 in 1 out switch control;

Can access or control sensors, access control switches and other

equipment;

IP acquisition method: PPPoE, Netcom (default enabled), DHCP, static IP address

Protocol: Support IPv4, IP v6, HTTPS , TCP, UDP, DHCP, RTP, RTSP,

DNS, DDNS , NTP, port mapping and other network protocols

Compatibility

Support ONVIF standard protocol,ONVIF Profile-S,ONVIF

Profile-T,realize the video preview and recording of docking

mainstream brand NVR and PC client, etc.

Network Interface: 10/100M

Client

Support mobile APP video preview (IOS, Android); Support local

management of IPC by PC client, realize multi-channel IPC live

broadcast, local hard disk storage, etc.;

POE: Support(optional)

General:

IR Cut Filter: Set of double light switch IR-CUT filter

Lens Mount Board Lens 2.8mm F1.0

Aux Luminary 6pcs Warm Light LED

Light Wavelength: 850n

Illuminate Distance: 20m

Waterproof Criterion: IP 6

I/O Connector: 1*DC Connector ,1* RJ45(10/100M Network)

Supplied Voltage: DC12V/PoE(802.3af/820.3at)

Working Environment: -10°C~+60°C, 10%~90% ( Built in Heater being optional added

for enviroment lower than -20° )
