K-board C-700 SentinelEurope

Model Nº: MY-C210-I

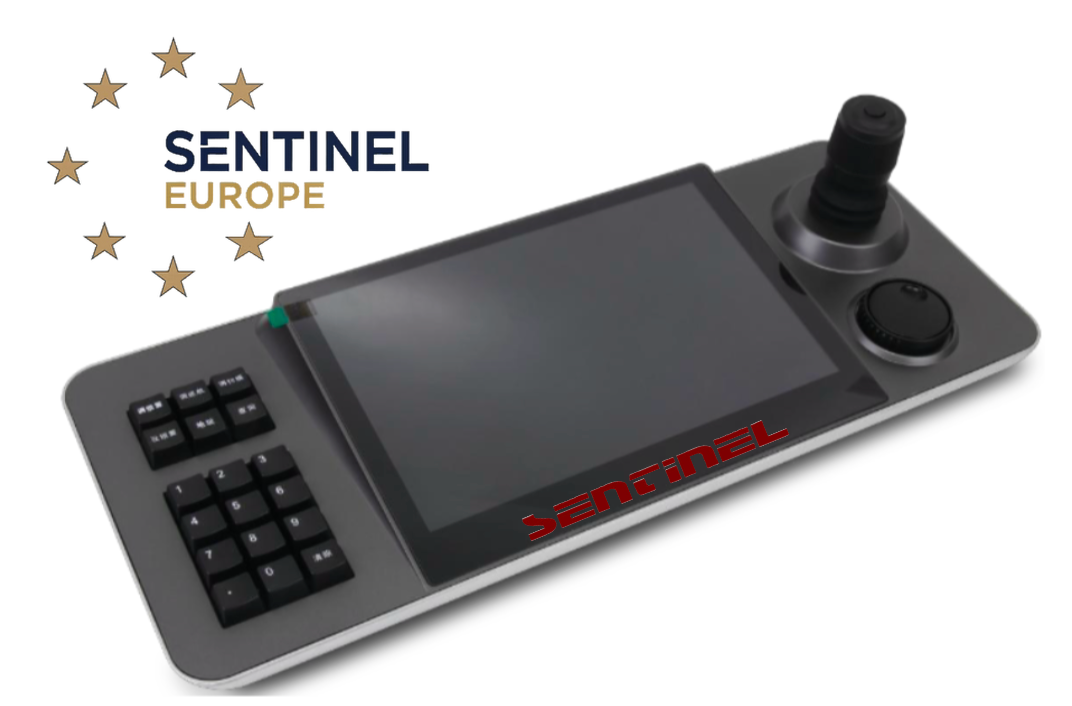

Product name： V1 Network Color touch Keyboard controller

Application：

It can be used to install a multi-network PTZ Cameras, Such as: schools,hospitals, hotels, residential areas, factories, workshops, etc., to achieve a unified LAN ONVIF control device.

Description :

C700 is a new generation of Android system network touch keyboardWhich is the Independent design and development from MYTECH,bulit in10.1 inch capacitive touch screen,simple and friendly UI design. Can be realize the real-time preview when the keyboard touch screen opened,And the image will come to the external display through the HDMI Interface.Support H.265 1 CH 4K@30fps;H.264 1 CH 1080P@60fp;4 CH 720P@30fps decoding,4D Joystick used to PTZ Control and fast positioning target.

Functions：

> 10.1 inch capacitive touch screen

> Support Android 6.0 operating system

> Support H.265 / H.264 / decoding, maximum 4 screen segmentation

> Support viewing images on the touch screen or putting images on the

display via HDMI

> Support the network access to the full range of our PTZ Camera

> Support PTZ control, preset,Patrol and track set and call

> Support ONVIF protocol

> Support up to 1024 devices to add

> Support U disk upgrade, external mouse
