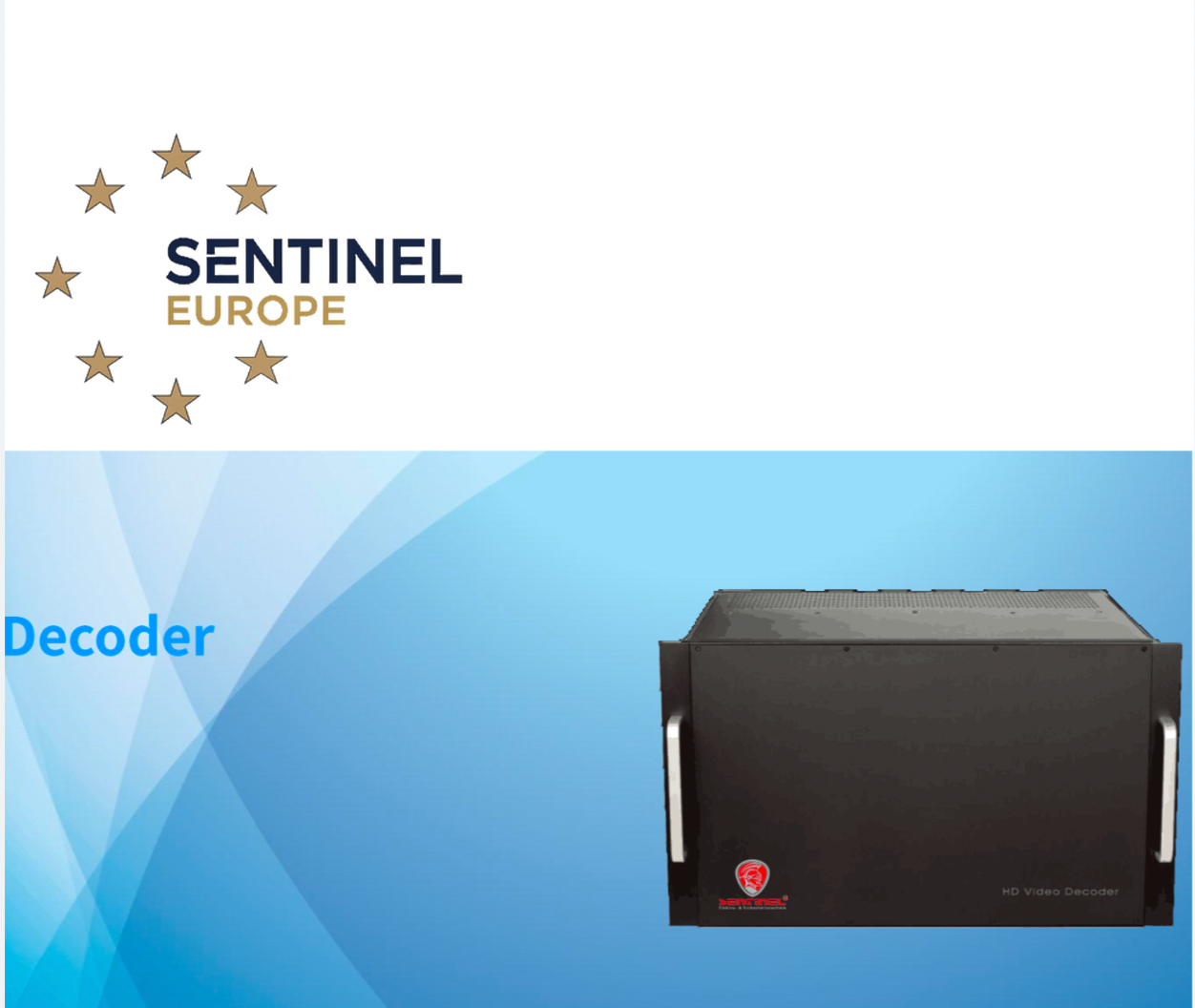

Decoder SentinelEurope

Models Nº:

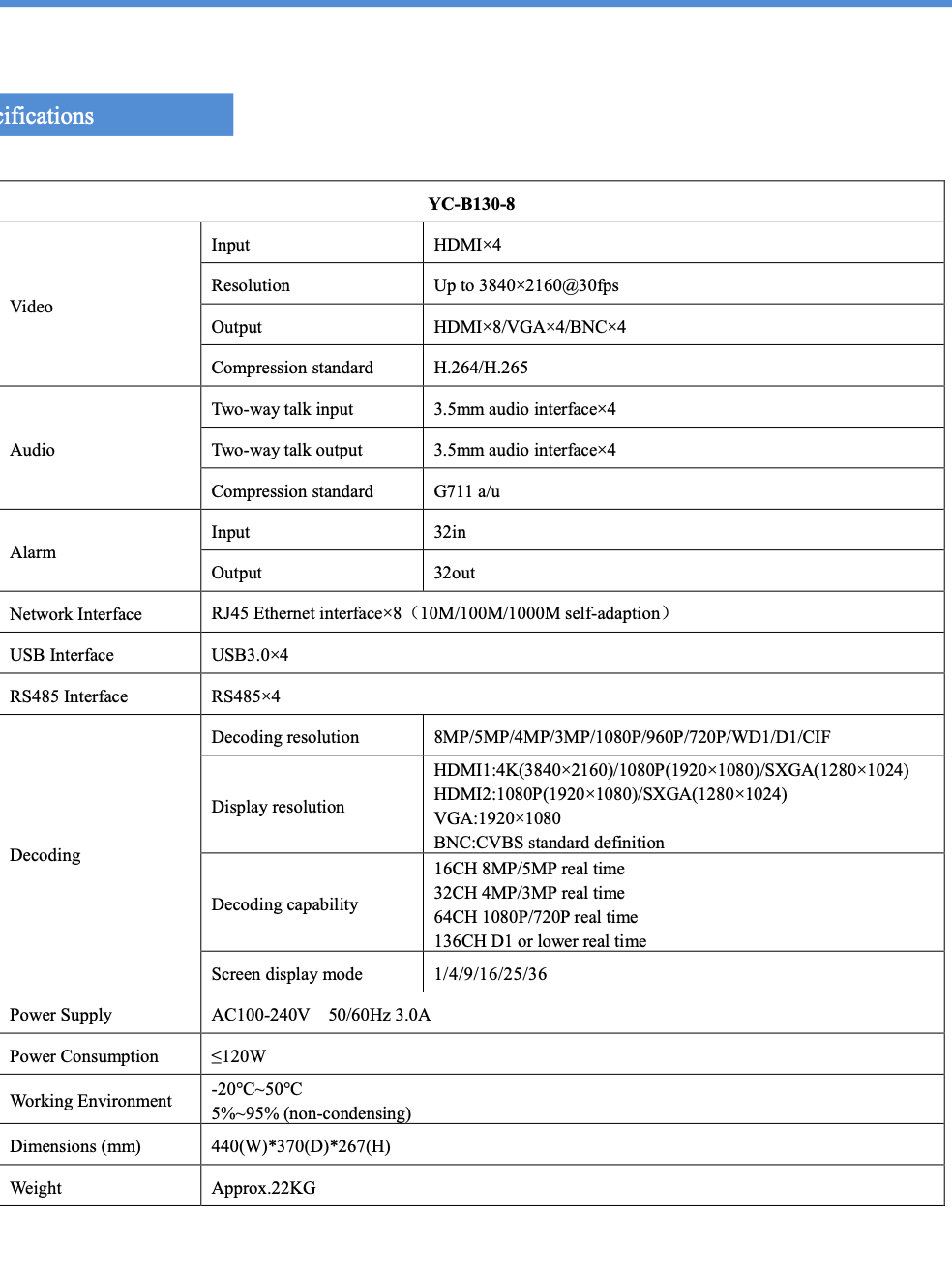

YC-B130-8

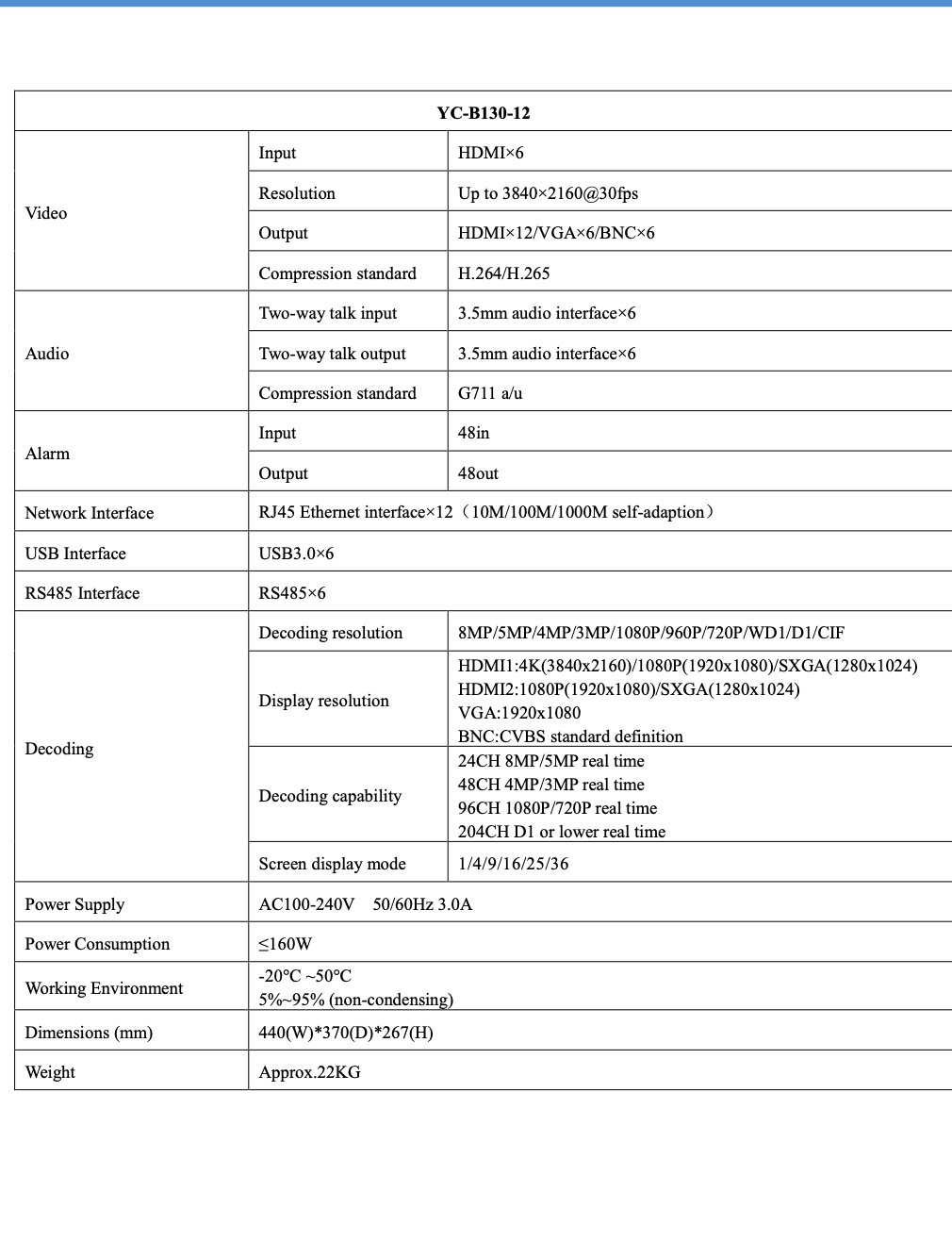

YC-B130-12

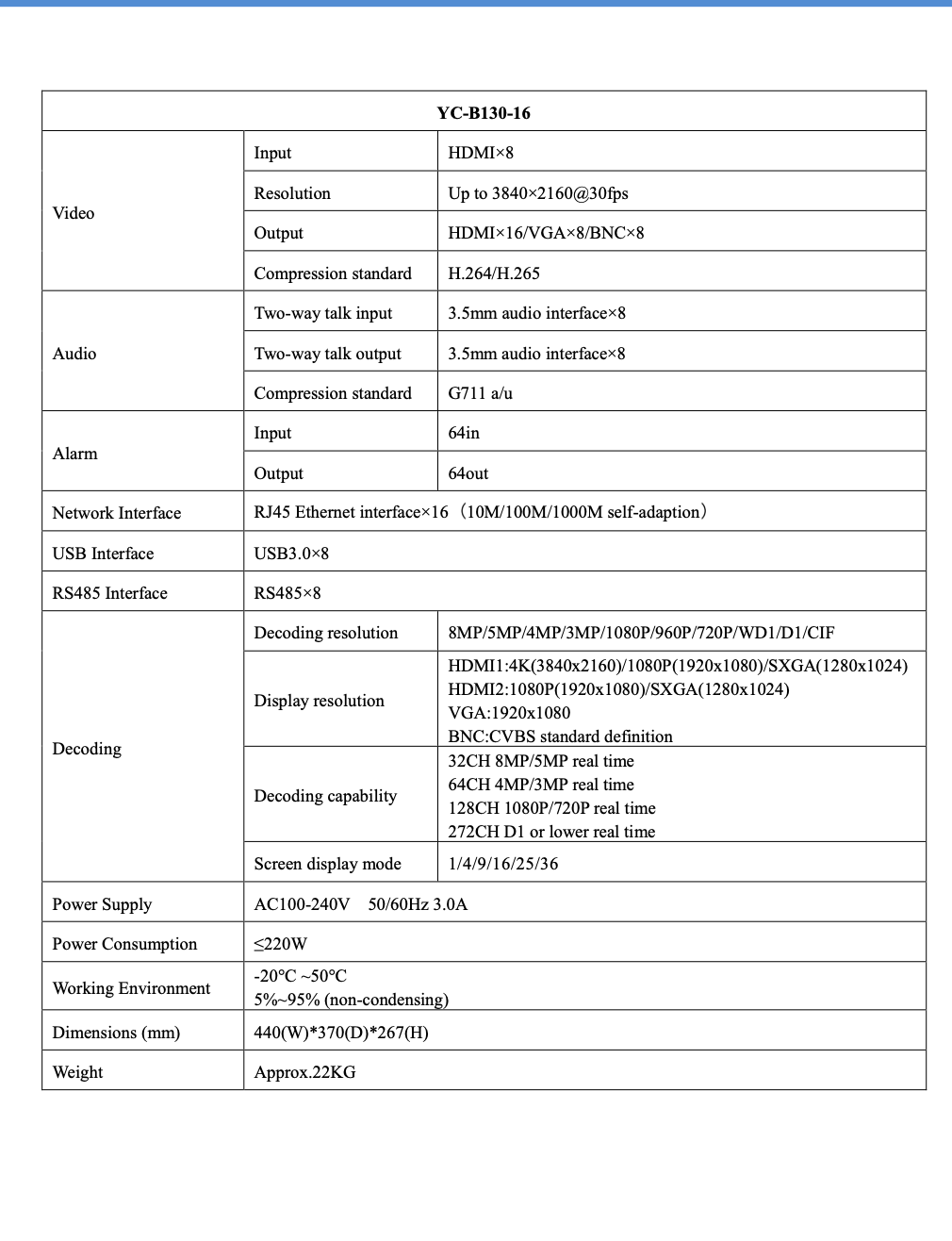

YC-B130-16

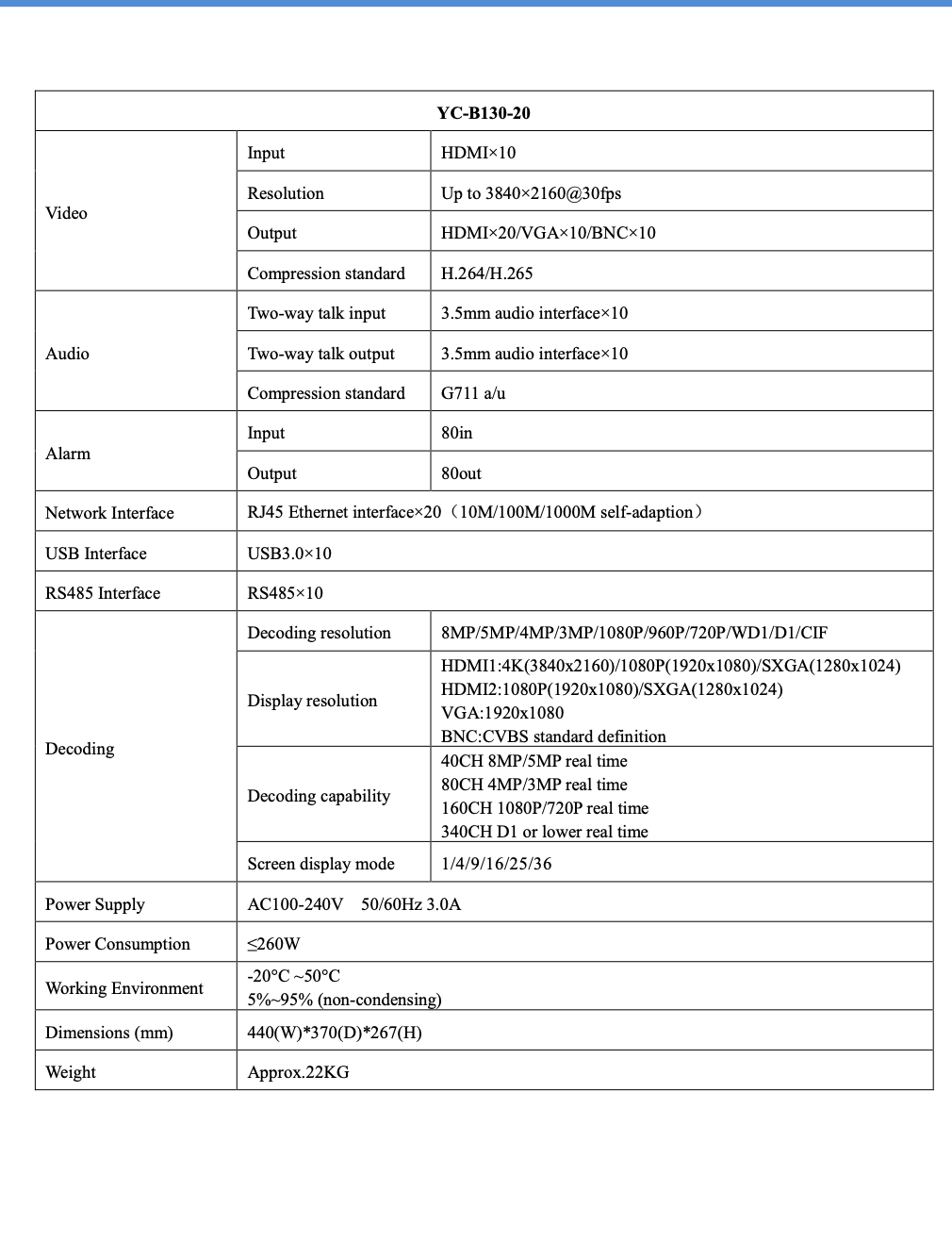

YC-B130-20

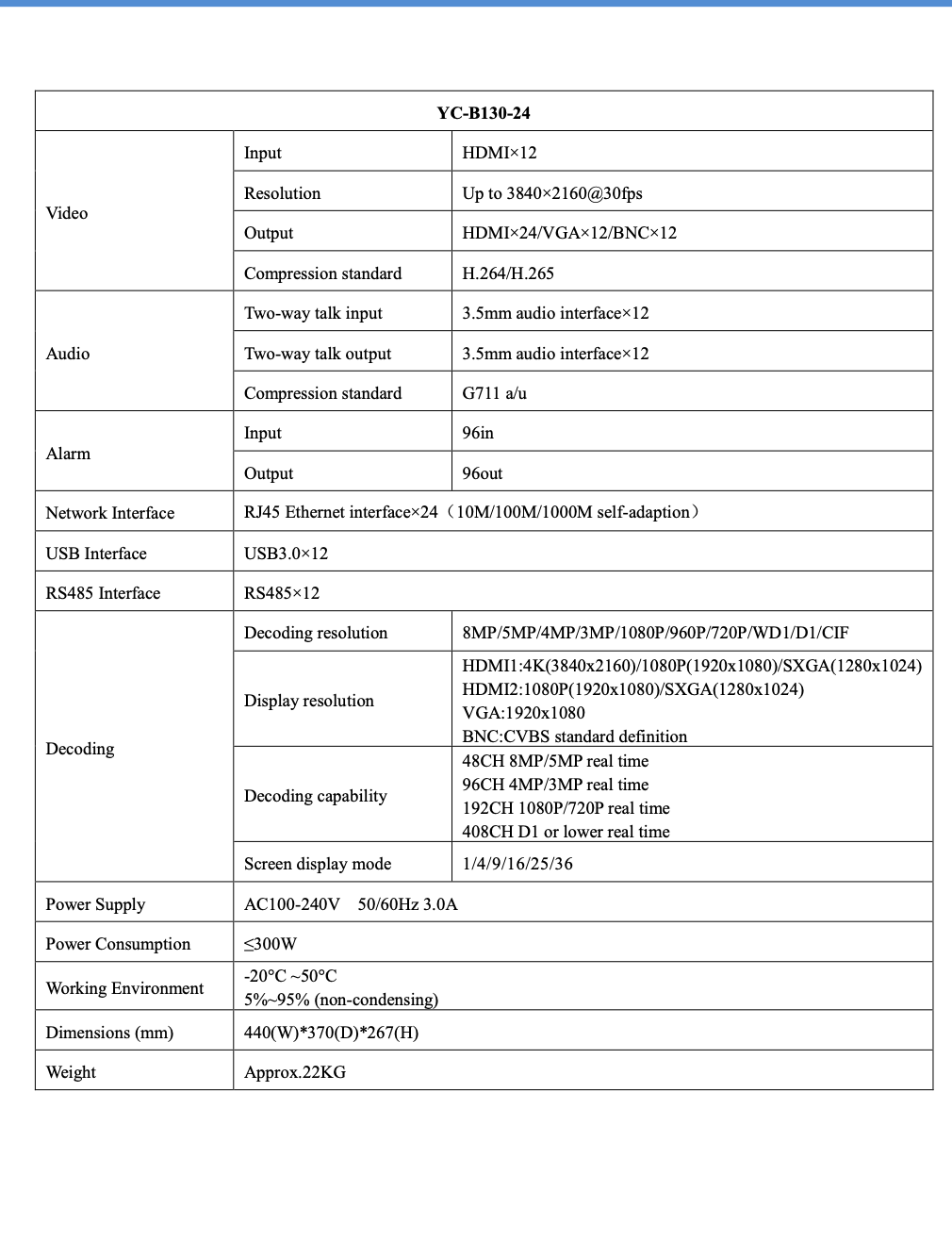

YC-B130-24

Decoding & Display (Single Card)

● 2*HDMI@1080P; HDMI1 supports 4K

● Supports PS, RTP, TS, ES encapsulation formats (in

platform running mode)

● Supports NTSC & PAL video formats

● H.265 HP/MP/BP and H.264 HP/MP/BP

● 4CH 8MP/5MP@30fps or 8CH 4MP/3MP@30fps or

16CH 1080P/720P@30fps or 34CH D1 or lower

● G.711A/G.711U audio compression

● 1CH audio input; 1CH audio output

Decoding Control

● Supports live view and playback decoding

● 1/4/9/16/25/36 screen display mode

● Window opening, roaming

● View cameras or camera groups in sequence

● Support infinite splicing display, typical splicing mode:

2×2/3×3/4×4/6×4 etc.

● Support a maximum of 24 CH output; up to 12 decoding

cards inserted

Stream Mode

● A&V streams can be directly acquired from TVT

IPC/DVR/NVR by SDK private protocol

● A&V streams can be acquired form NVMS platform or

encoding devices by RTSP/ RTP protocol

● A&V streams can be acquired from IPC by ONVIF

protocol Device Management

● Supports multi-level device control (master-slave mode)

● A maximum of 64 decoders can be manageable

Operation and Maintenance

● Supports device search

● Supports WEB client access, configuration and

management

● Supports time zone, time and date settings

● Supports data port and HTTP port settings

● Supports data backup and restoration

● Supports remote reboot and one-button reset

● Supports online and U-disk upgrade

● Supports dual gigabit Ethernet ports, load balancing

● Modular and hot pluggable designs are convenient to

expand and maintain and unaffected to other board card

when one board card is damaged

Access

● Provides HTTP API protocol for the third-party

● Supports platform running mode and device running

mode
