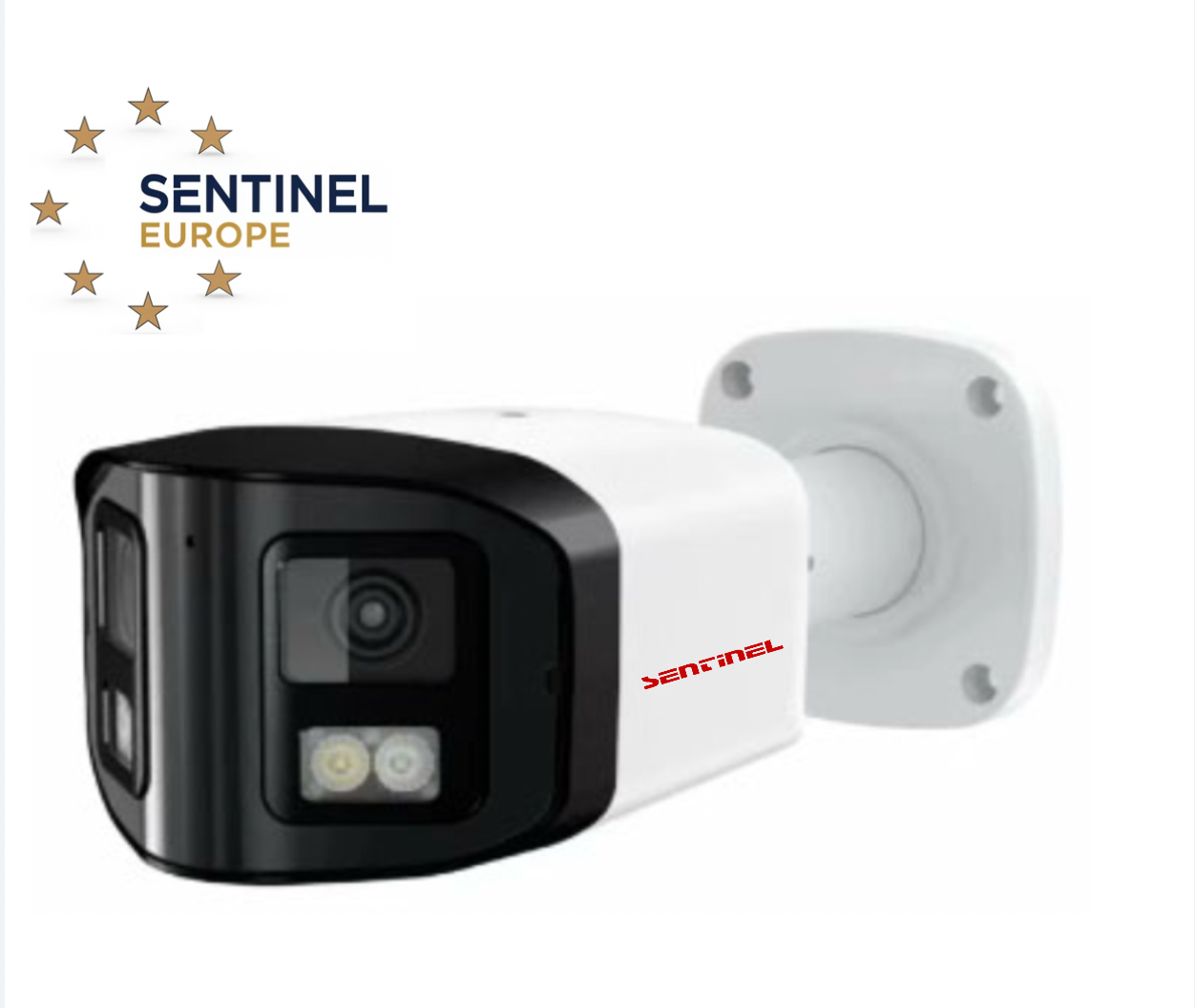

Dual Lens PoE type SentinelEurope

Model Nº: NST-IPM6824-PAN

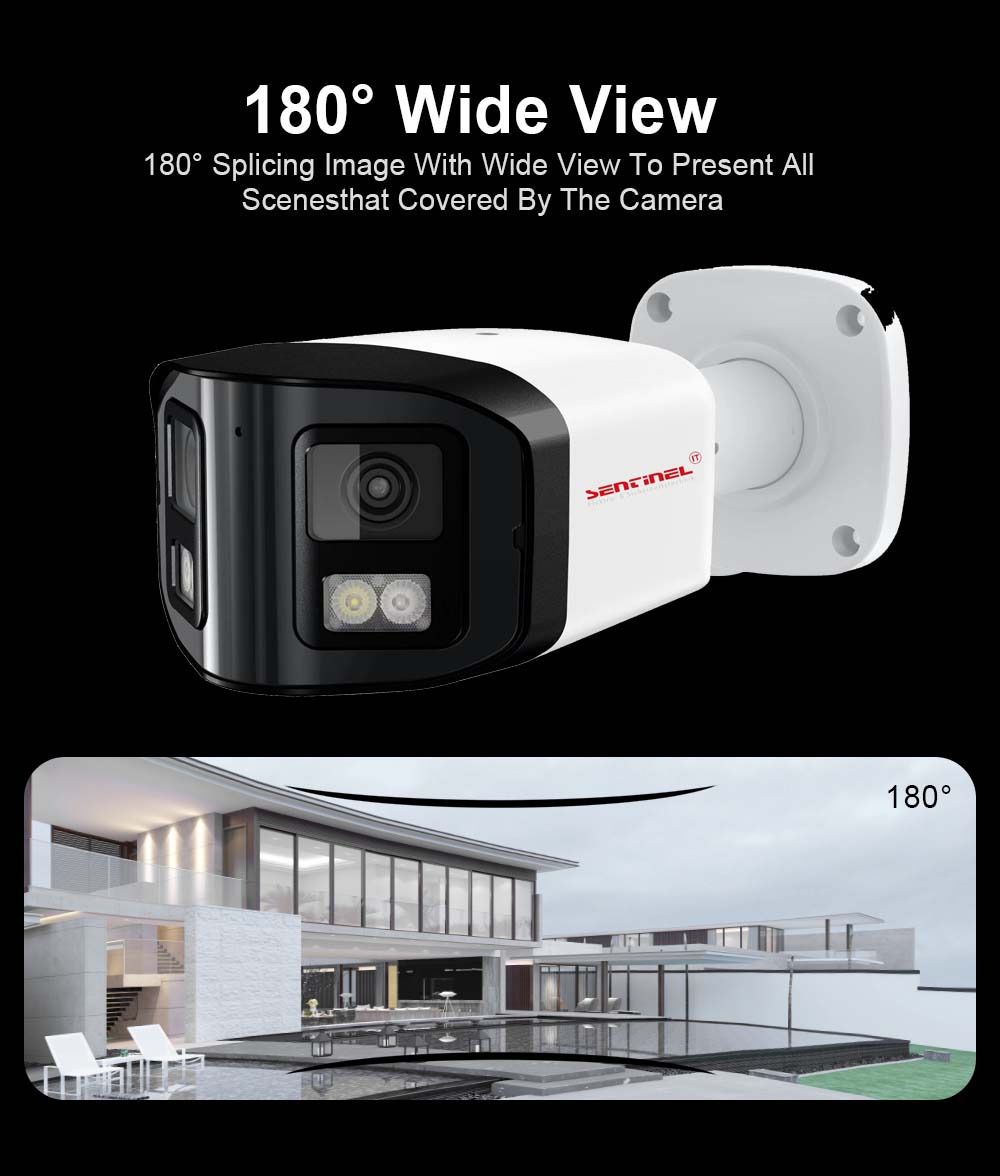

170° FOV Dual Lens Panoramic AI IP PoE Bullet Camer

4MP wide-view resolution 3840 x 1080P (32:9)

180 °wide-angle

Low illumination 0.01Lux

RTSP and Onvif compatible with many third-party NVR

Easy-to-use P2P Cloud service

Support Alarm Snapshot to Email and FTP

Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access

2 pcs Warm light + 2 pcs IR led distance 20-30 meters

F1.6 3.6 mm fixed dual Lens

Built-in Mic and speaker two-way audio

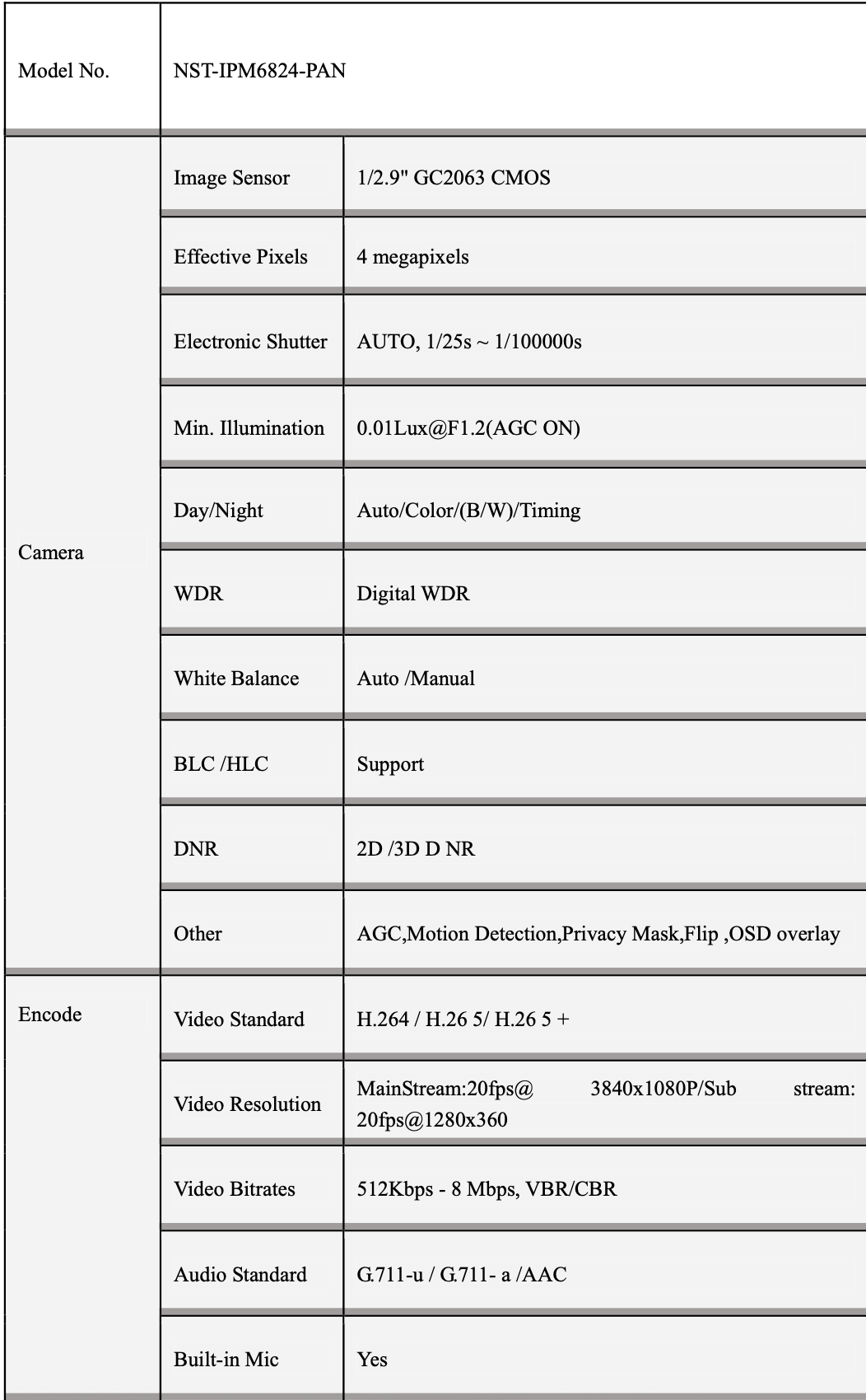

CAMERA

Image Sensor: 1/2.9" GC2063 CMOS

Effective Pixels: 4 megapixels

Electronic Shutter: AUTO, 1/25s ~ 1/100000s

Min. Illumination: 0.01Lux@F1.2(AGC ON)

Day/Night: Auto/Color/(B/W)/Timing

WDR: Digital WDR

White Balance: Auto /Manual

BLC /HLC: Support

DNR: 2D /3D D NR

Other: AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay

ENCODE

Video Standard: H.264 / H.26 5/ H.26 5 +

Video Resolution: MainStream:20fps@ 3840x1080P/Sub stream:

20fps@1280x360

Video Bitrates: 512Kbps - 8 Mbps, VBR/CBR

Audio Standard: G.711-u / G.711- a /AAC

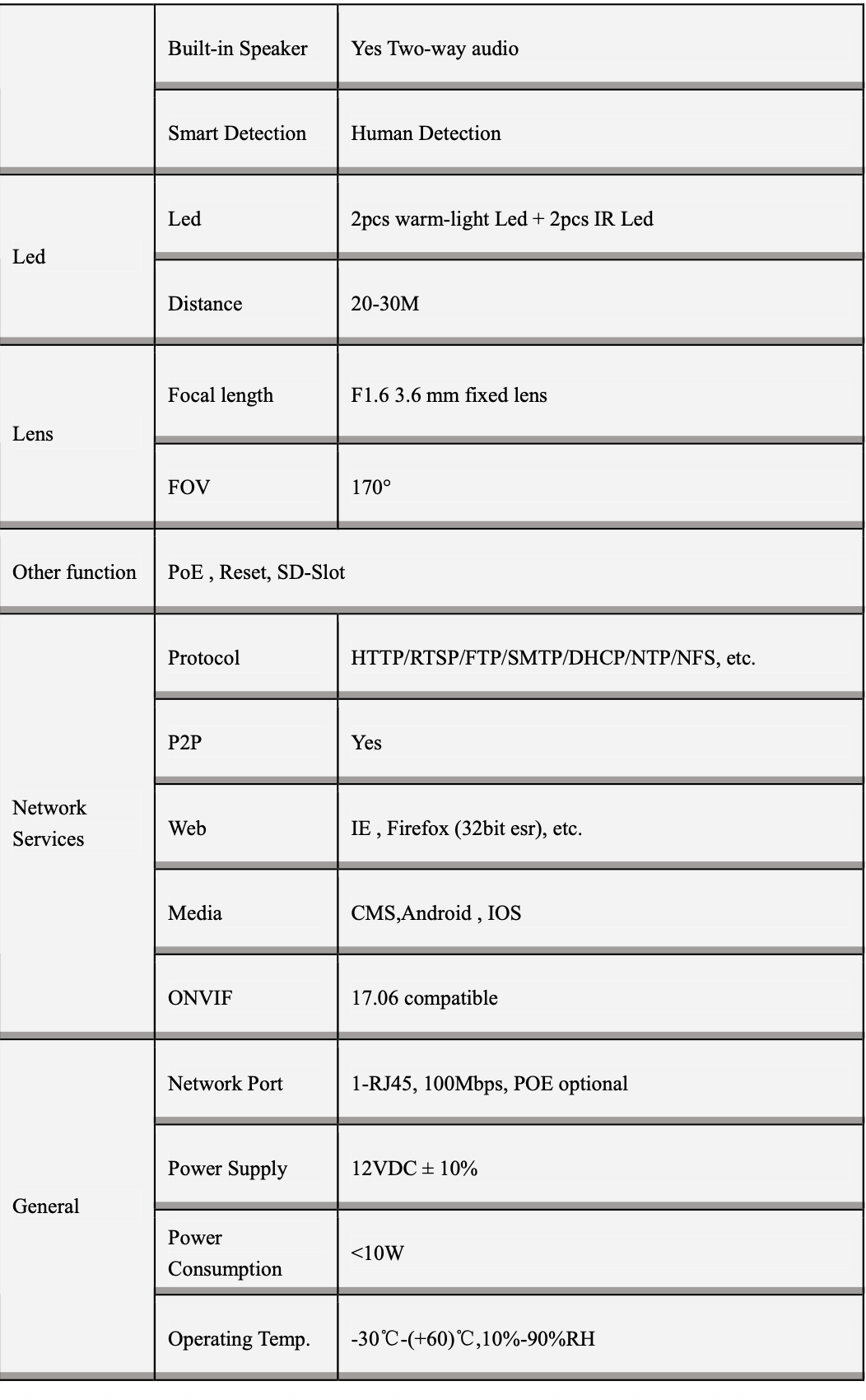

Built-in Mic: Yes

Built-in Speaker: Yes Two-way audio

Smart Detection: Human Detection

LED

Led: 2pcs warm_light Led + 2pcs IR Led

Distance: 20-30 M

LENS

Focale lenght: F1.6 3.6 mm fixwd Lens

FPV: 170º

Other function: PoE, Reset; SD-Slot

NETWOR SEVICE

Protocol:HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.

P2P: Yes

Web: IE , Firefox (32bit esr), etc.

Media: CMS,Android , IOS

ONVIF: 17.06 compatible

GENERAL

Network Port: 1-RJ45, 100Mbps, POE optional

Power Supply: 12VDC ± 10%

Power Consumption: <10W

Operating Temp.: -30℃-(+60)℃,10%-90%RH
