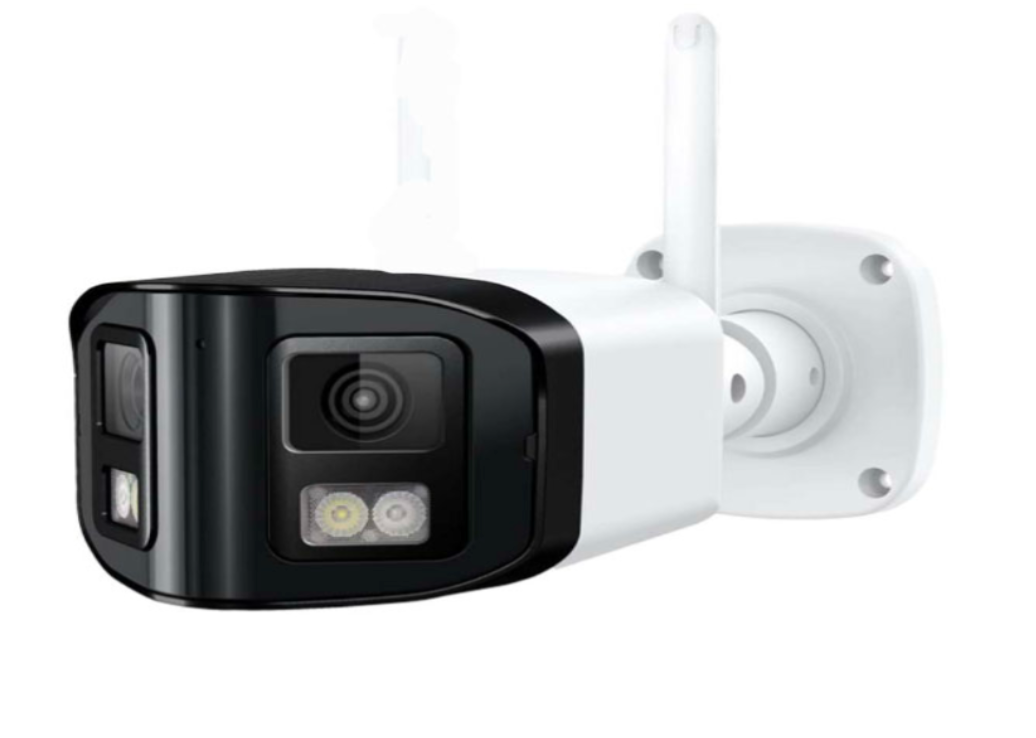

Dual Lens 4G Type SentinelEurope

Model Nº: NST-IPM6824-4G

4G SIM card slot – Support EU 4G SIM card

1/2.9" CMOS sensor

4MP wide-view resolution 3840 x 1080P (32:9)

170 °wide-angle

Low illumination 0.01Lux

Easy-to-use P2P Cloud service

2 pcs Warm light + 2 pcs IR led distance 20-30 meters

F1.6 3.6 mm fixed dual Lens

Built-in Mic and speaker two-way audio

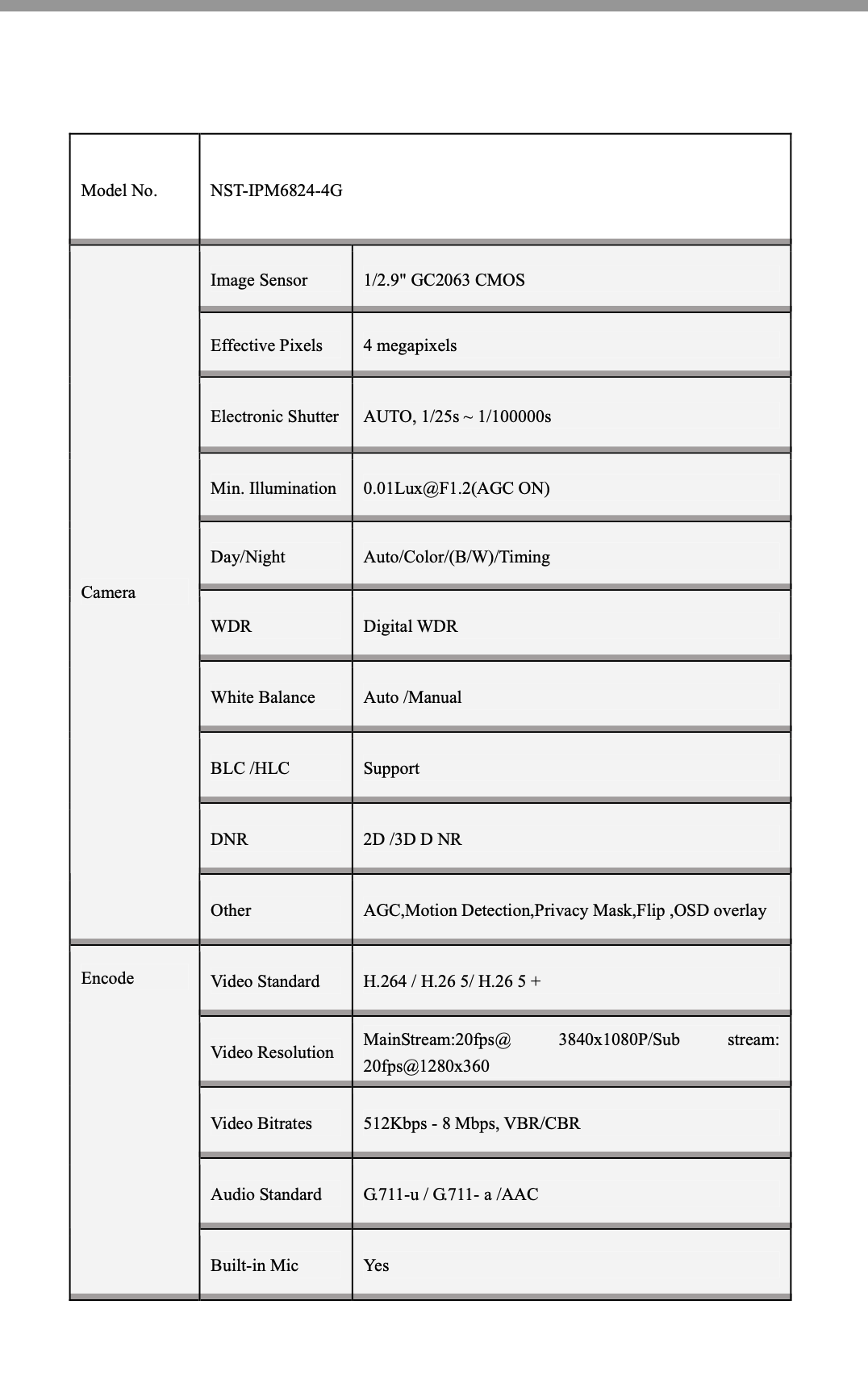

Image Sensor: 1/2.9" GC2063 CMOS

Camera

Effective Pixels: 4 megapixels

Electronic Shutter: AUTO, 1/25s ~ 1/100000s

Min. Illumination: 0.01Lux@F1.2(AGC ON)

Day/Night: Auto/Color/(B/W)/Timing

WDR: Digital WDR

White Balance: Auto /Manual

BLC /HLC: Support

DNR: 2D /3D D NR

Other: AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay

Encode

Video Standard: H.264 / H.26 5/ H.26 5 +

Video Resolution: MainStream:20fps@ 3840x1080P/Sub stream: 20fps@1280x360

Video Bitrates: 512Kbps - 8 Mbps, VBR/CBR

Audio Standard: G.711-u / G.711- a /AAC

Built-in Mic: Yes

Built-in Mic: and speaker two-way audio

Smart Detection: Human Detection

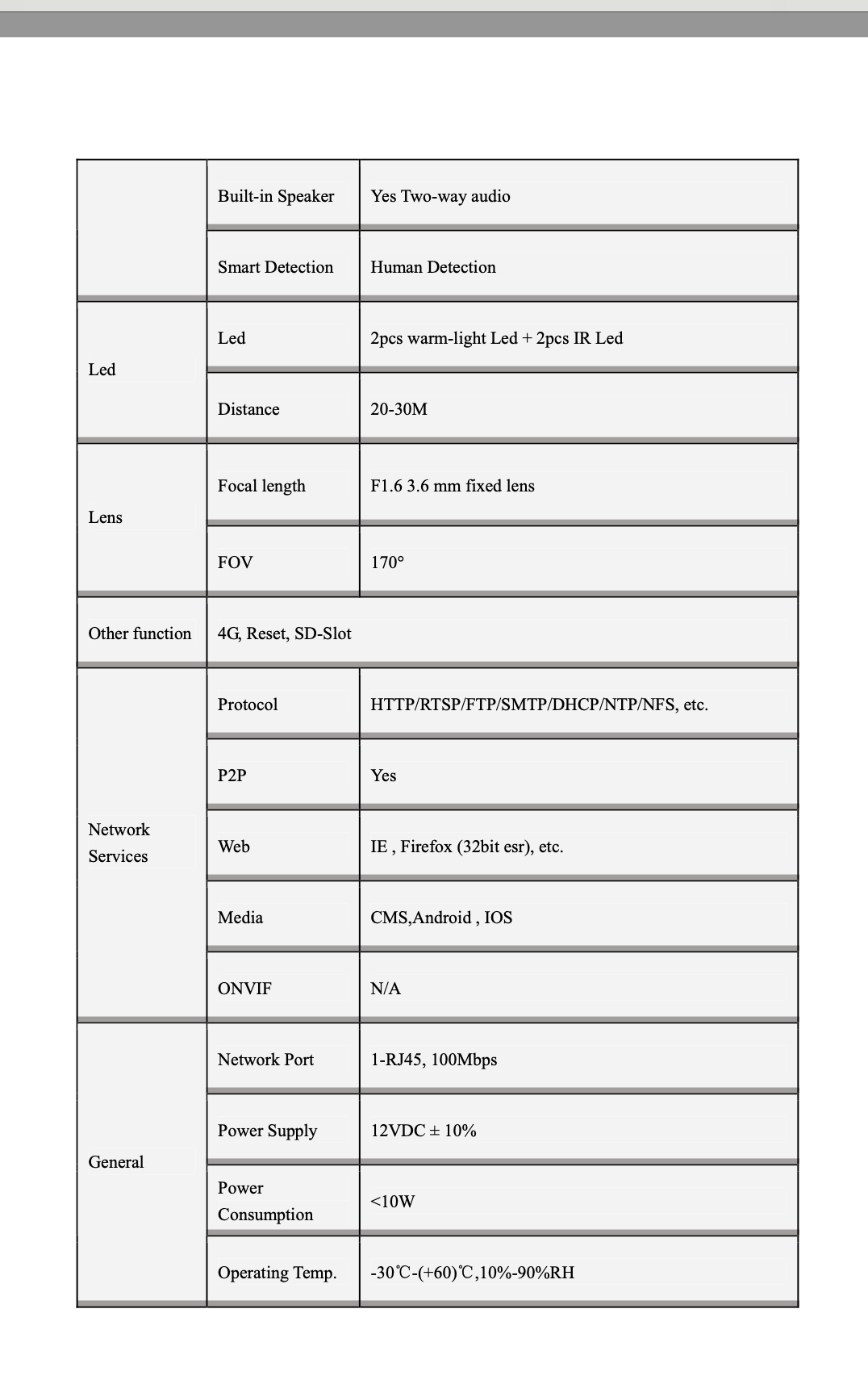

LED

Led: 2pcs warm-light Led + 2pcs IR Led

Distance: 20-30M.

LENS

Focal length: F1.6 3.6 mm fixed len

FOV: 170°

Other function: 4G, Reset; SD-slot

Network Services

Protocol: HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc

P2PS Yes

Web: IE , Firefox (32bit esr), etc.

Media: CMS,Android , IOS

ONVIF: N/A

General

Network Port: 1-RJ45, 100Mbps

Power Supply: 12VDC ± 10%

Power Consumption: <10W

Operating Temp.: -30℃-(+60)℃,10%-90%RH
