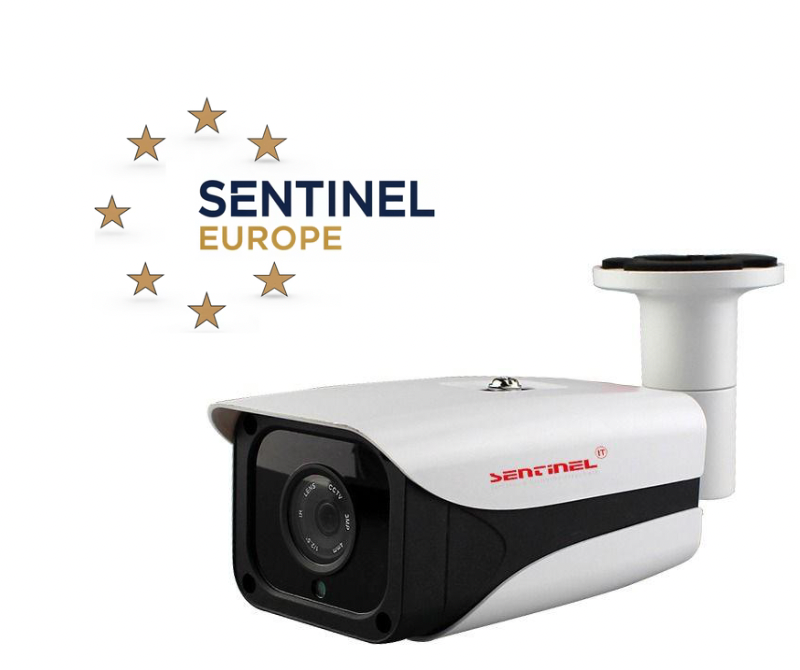

Face Recognition Camera SentinelEurope

model Nº: NST-IPH6565-FR

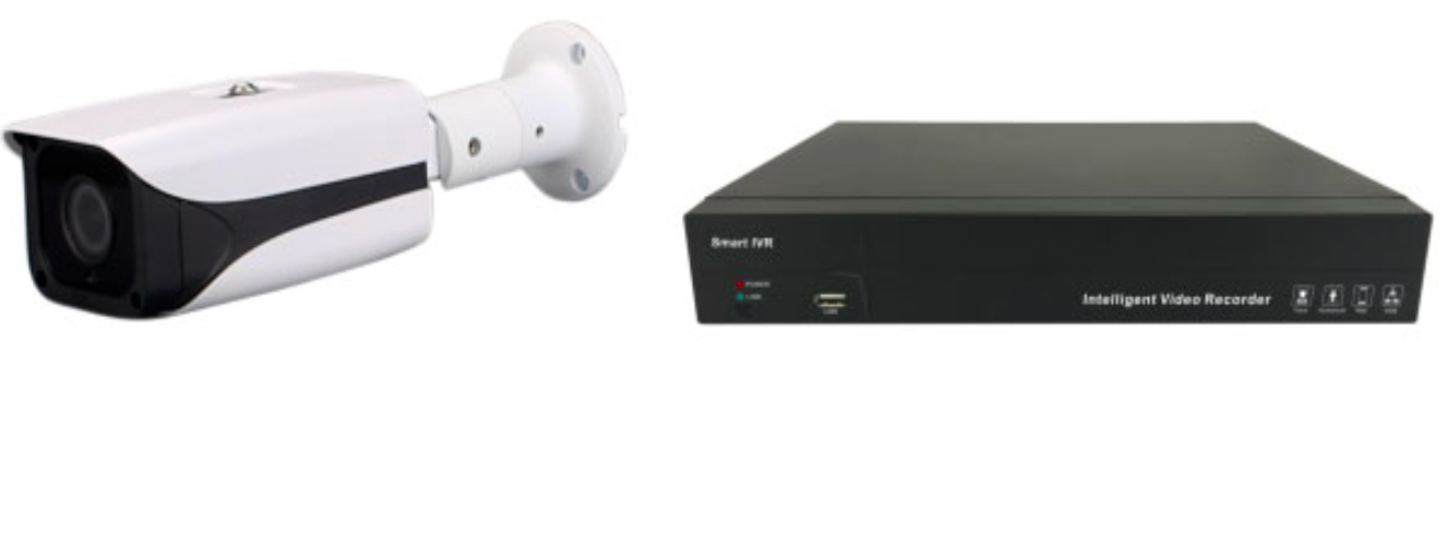

NVR: NVR-H2032-A

Face Recognition rate up to 95-99%

Lens:Fixed 6mm ,With Micro SD Card Slot

IR LED: 4pcs IR LED

32CH NVR,4CH Recognition

Max resolution up to 5MP 2560*1920@20fps, 4MP 2560*1440@25fps,

Built-in face capture algorithm

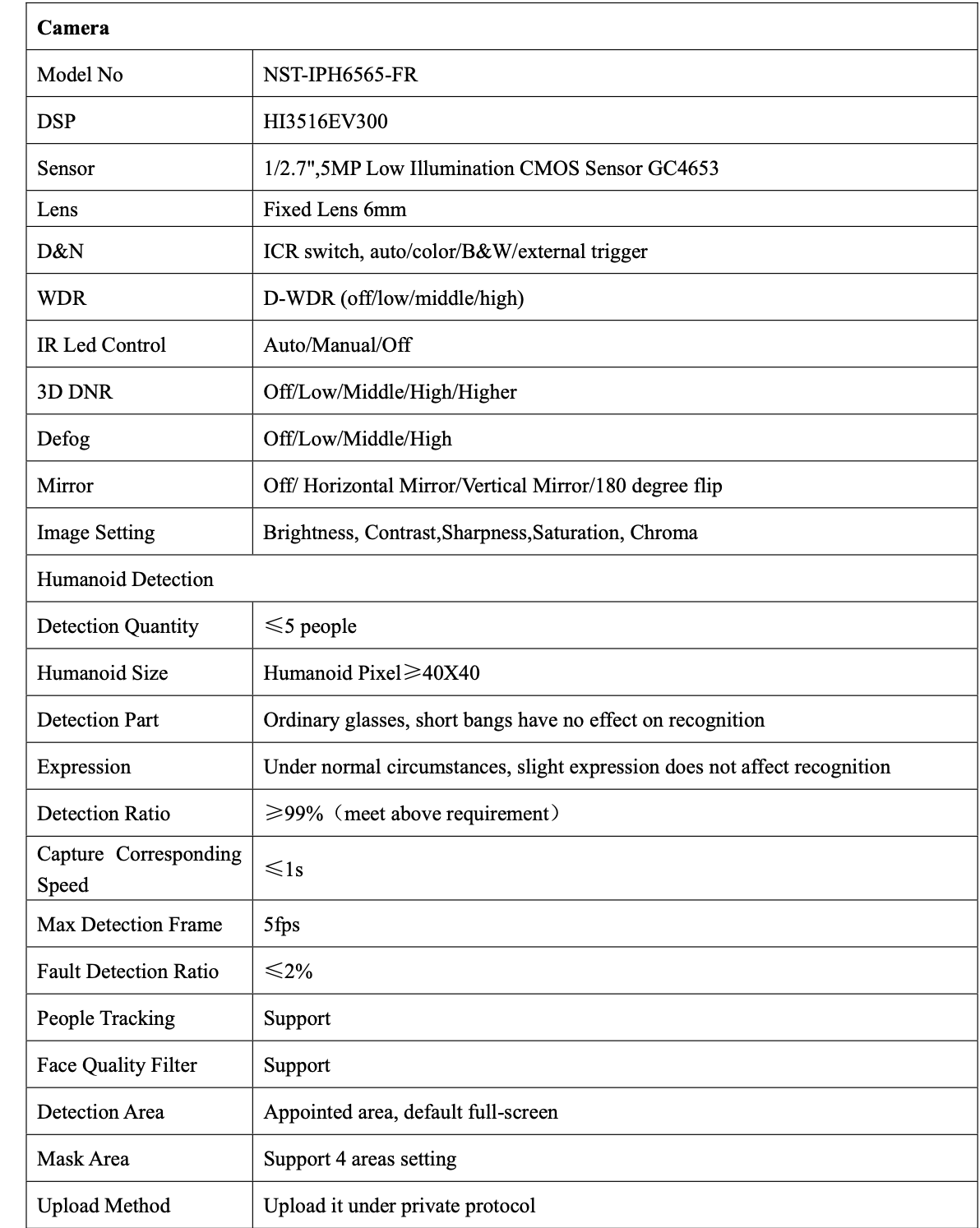

Camera:

DSP: HI3516EV300

Sensor: 1/2.7",5MP Low Illumination CMOS Sensor GC4653

Lens: Fixed Lens 6mm

D&N: ICR switch, auto/color/B&W/external trigger

WDR: D-WDR (off/low/middle/high)

IR Led Control: Auto/Manual/Off

3D DNR: Off/Low/Middle/High/Higher

Defog: Off/Low/Middle/High

Mirror: Off/ Horizontal Mirror/Vertical Mirror/180 degree flip

Image Setting: Brightness, Contrast,Sharpness,Saturation, Chroma

Humanoid Detection:

Detection Quantity: ≤5 people

Humanoid Size: Humanoid Pixel≥40X40

Detection Part: Ordinary glasses, short bangs have no effect on recognition

Expression: Under normal circumstances, slight expression does not affect recognition

Detection Ratio: ≥99%（meet above requirement）

Capture Corresponding Speed: ≤1s

Max Detection Frame: 5fps

Fault Detection Ratio: ≤2%

People Tracking: Support

Face Quality Filter: Support

Detection Area Appointed area, default full-screen

Mask Area: Support 4 areas setting

Upload Method: Upload it under private protocol

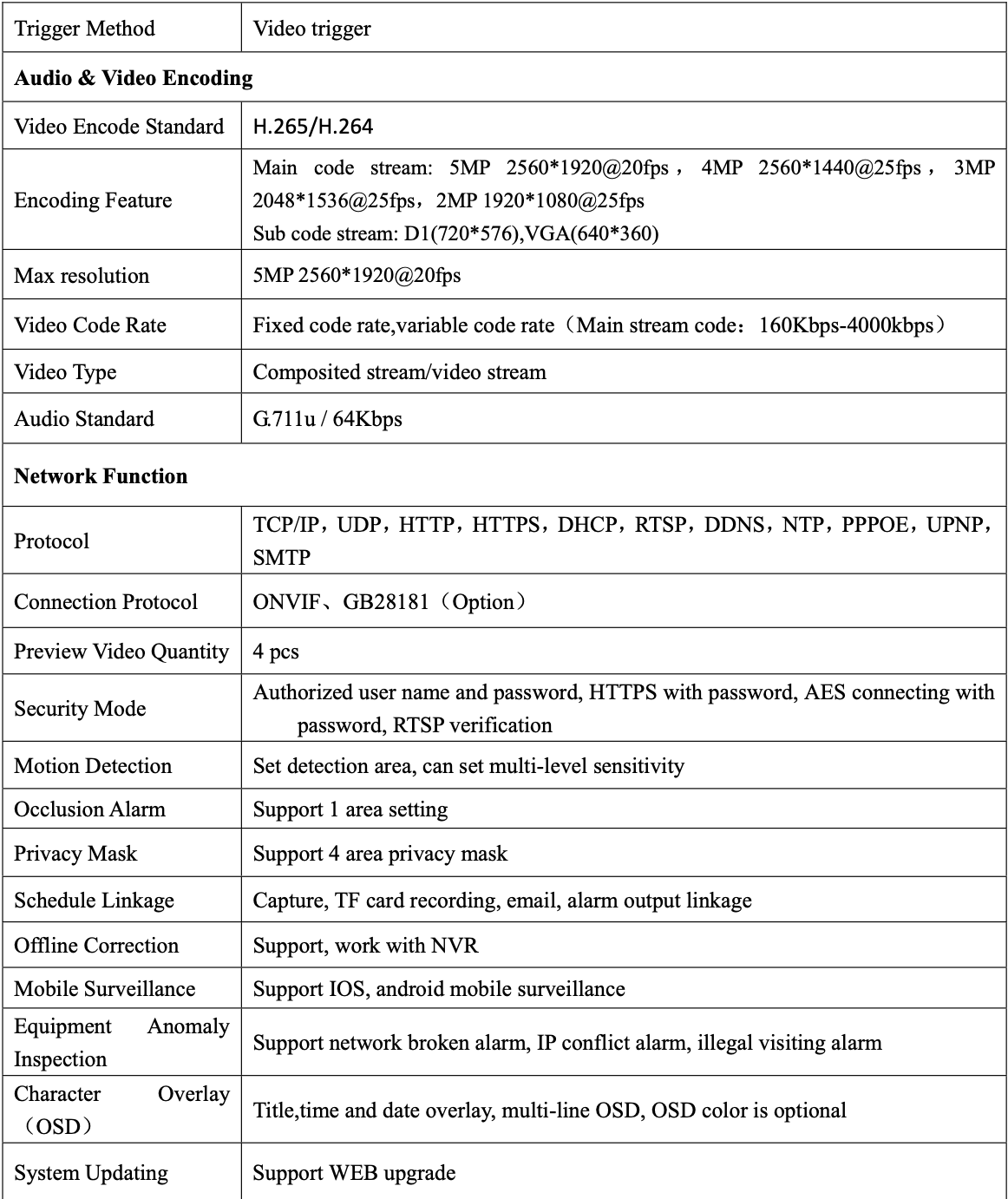

Trigger Method: Video trigger

Audio & Video Encoding:

Video Encode Standard: H.265/H.264

Encoding Feature: Main code stream: 5MP 2560*1920@20fps-4MP 2560*1440@25fps， 3MP 2048*1536@25fps-2MP 1920*1080@25fps-Sub code stream: D1(720*576),VGA(640*360)

Max resolution: 5MP 2560*1920@20fps

Video Code Rate: Fixed code rate,variable code rate（Main stream code：160Kbps-4000kbps）

Video Type: Composited stream/video stream

Audio Standard: G.711u / 64Kbps

Network Function:

Protocol

TCP/IP,UDP, HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP

Connection Protocol: ONVIF、GB28181（Option）

Preview Video Quantity: 4 pcs

Security Mode :Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification

Motion Detection: Set detection area, can set multi-level sensitivity

Occlusion Alarm: Support 1 area setting

Privacy Mask: Support 4 area privacy mask

Schedule Linkage: Capture, TF card recording, email, alarm output linkage

Offline Correction: Support, work with NVR

Mobile Surveillance: Support IOS, android mobile surveillance

Equipment Anomaly Inspection: Support network broken alarm, IP conflict alarm, illegal visiting alarm

Character Overlay（OSD): Title,time and date overlay, multi-line OSD, OSD color is optional

System Updating: Support WEB upgrade
