Mini Hidden Camera PoE type SentinelErope

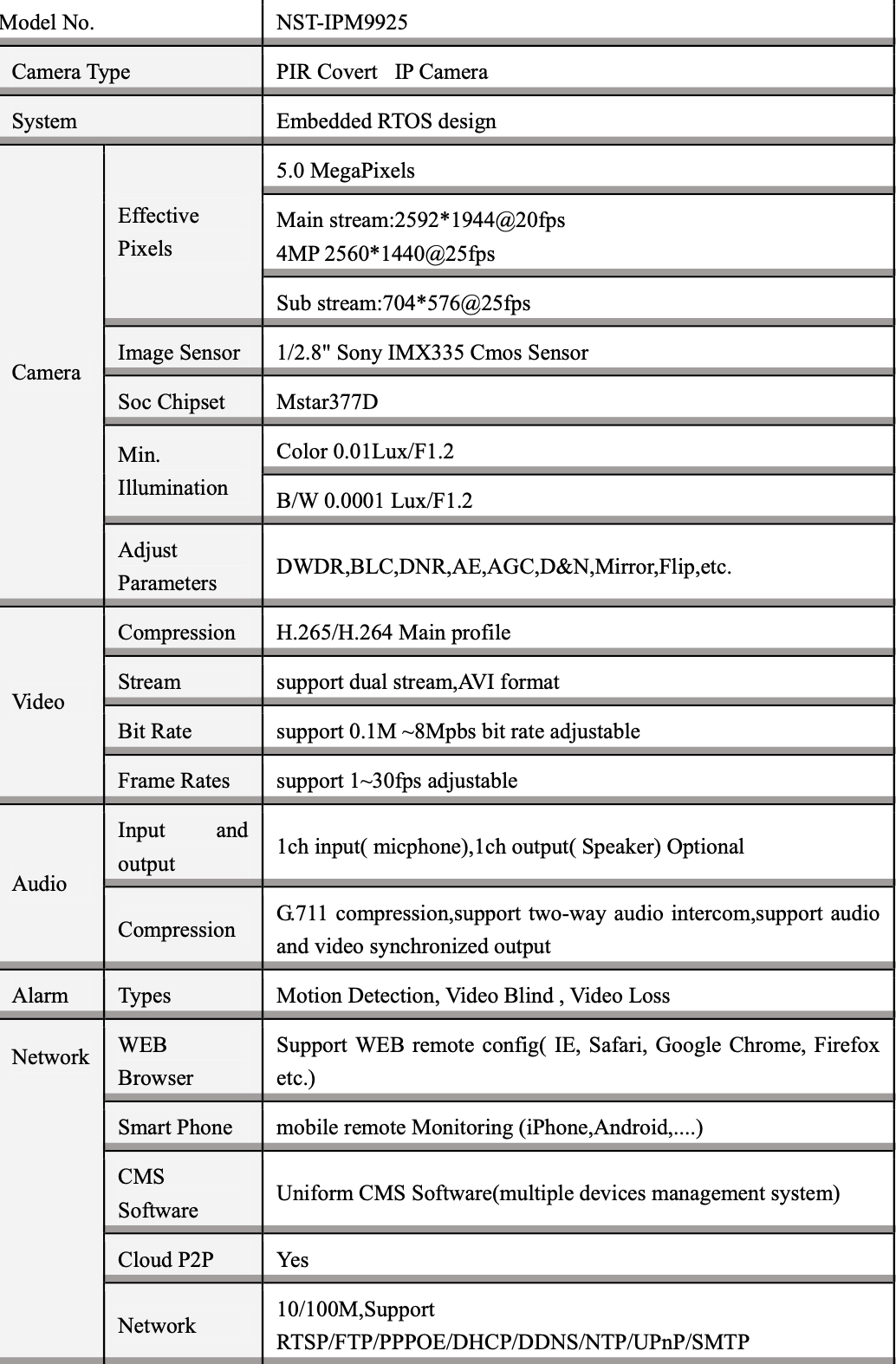

Model Nº NST-IPM9925

3.7mm Lens Wide Angle View/5.0MP 1/2.8" SONY STARVIS Sensor

Pinhole Lens/Two Way Audio (Built-in Mic and Speaker)

With 48pcs IR LEDs/Built-in PO

Camera Type: PIR Covert IP Camera

System: Embedded RTOS design

Effective Pixel: 5.0 MegaPixels/Main stream:2592*1944@20fps/4MP 2560*1440@25fps/Sub stream:704*576@25fp

Camera:

Image Sensor: 1/2.8" Sony IMX335 Cmos Sensor

Soc Chipset: Mstar377D

Min. Illumination: Color 0.01Lux/F1.2/B/W 0.0001 Lux/F1.2

Adjust Parameters: DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc

Video:

Compression: H.265/H.264 Main profile

Stream:  support dual stream,AVI format

Bit Rate: support 0.1M ~8Mpbs bit rate adjustable

Frame Rates: support 1~30fps adjustable

Audio:

Input and output: 1ch input( micphone),1ch output( Speaker) Optional

Compression: G.711 compression,support two-way audio intercom,support audio

and video synchronized output

Alarm Types: Motion Detection, Video Blind , Video Loss

Network:

WEB Browser: Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone: mobile remote Monitoring (iPhone,Android,....

CMS Software: Uniform CMS Software(multiple devices management system)

Cloud P2P: Yes

Network: 10/100M,Support---RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

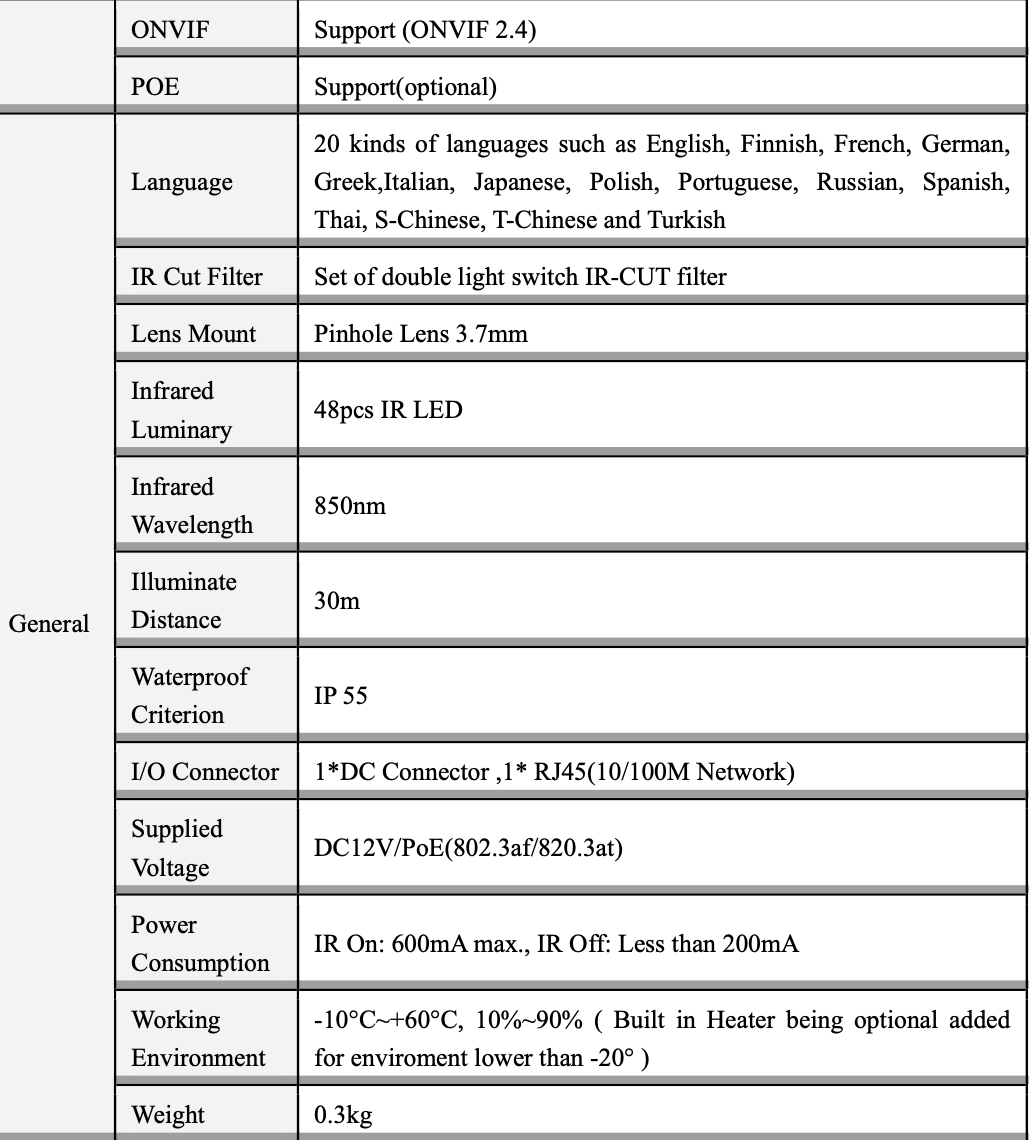

ONVIF: Support(ONIVF2.4)

POE: SUPPORT(OPTIONAL)

General:

Language:20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish.

IR Cut Filter: Set of double light switch IR-CUT filter

Lens Mount: Pinhole Lens 3.7mm

Infrared Luminary: 48pcs IR LED

Infrared Wavelength: 850nm

Illuminate Distance: 30

Waterproof Criterion: IP 5

I/O Connector: 1*DC Connector ,1* RJ45(10/100M Network

Voltage Supplied:  DC12V/PoE(802.3af/820.3at)

Power Consumption: IR On: 600mA max., IR Off: Less than 200m

Working Environment: -10°C~+60°C, 10%~90% ( Built in Heater being optional added

for enviroment lower than -20° )

Weight:  0.3kg
