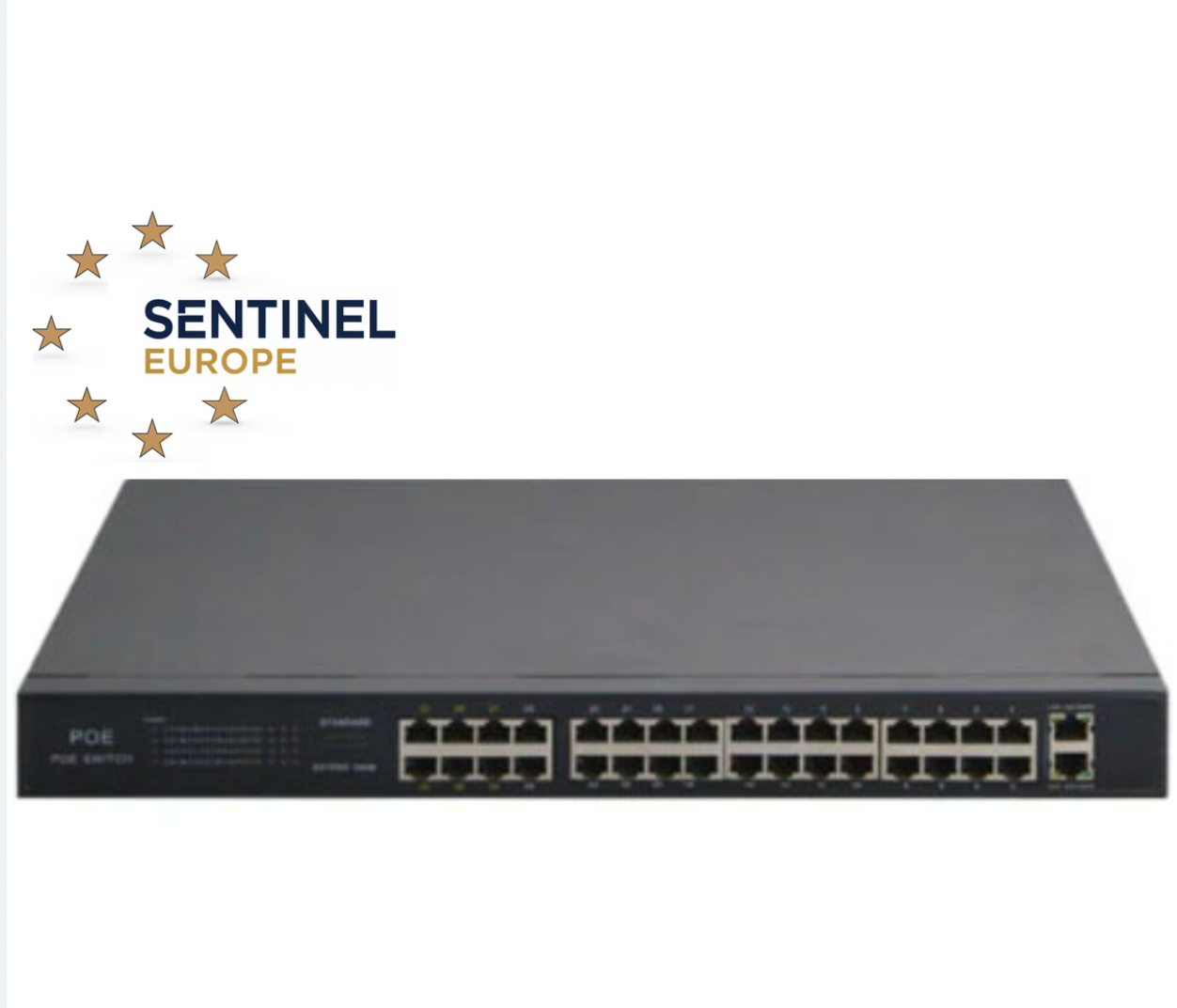

PoE Switch 32 SentinelEurope

Model Nº: NST-POE3202G

PoE Switch With 2 Port Full Gigabit Uplink

Type: 32+2 port 576 W POE switch(Built-in)

POE Port: 1 to 32port support IEEE802.3af/at

SFP port: 33th-34th port support 1000Mbps

Output Power: 15.4W/30W IEEE802.3af/at

Power Pin: Both 1/2+、3/6- and 4/5+7/8-

Whole Power: ≤576W(52V 4.8A)

POE Protocol: IEEE 802.3af/IEEE 802.3at

POE Type: End-span

Power Distance: ≤150m

Networ Standard: IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at

Network Medium: 100/1000BASE-TX: 5 class and above non shielded twisted pair

Data Distance: ≤150m

Switch Capability: 16Gbps

Forwardin Mode: Store and forward

Forwardin Rate: 10BASE-T:14880PPS/port 100BASE-tx:14800pps/port 1001000BASE-T:1488095pps/port

MAC Address: 16K MAC address table

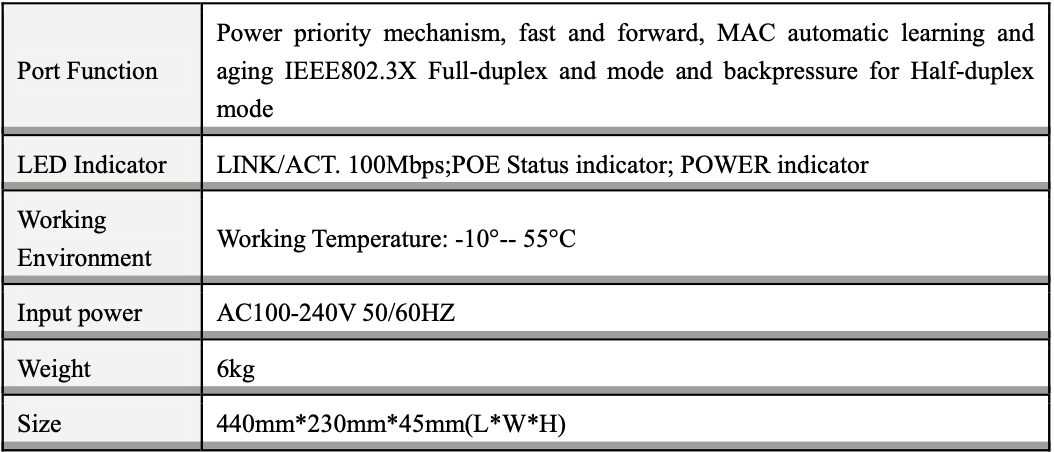

Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

LED Indicator: LINK/ACT. 100Mbps;POE Status indicator; POWER indicator

Working Environment: Working Temperature: -10°-- 55°C

Input power: AC100-240V 50/60HZ

Size: 440mm*230mm*45mm(L*W*H)
