PoE Switch 10 SentinelEurope

Model Nº: NST-EXT-POE82

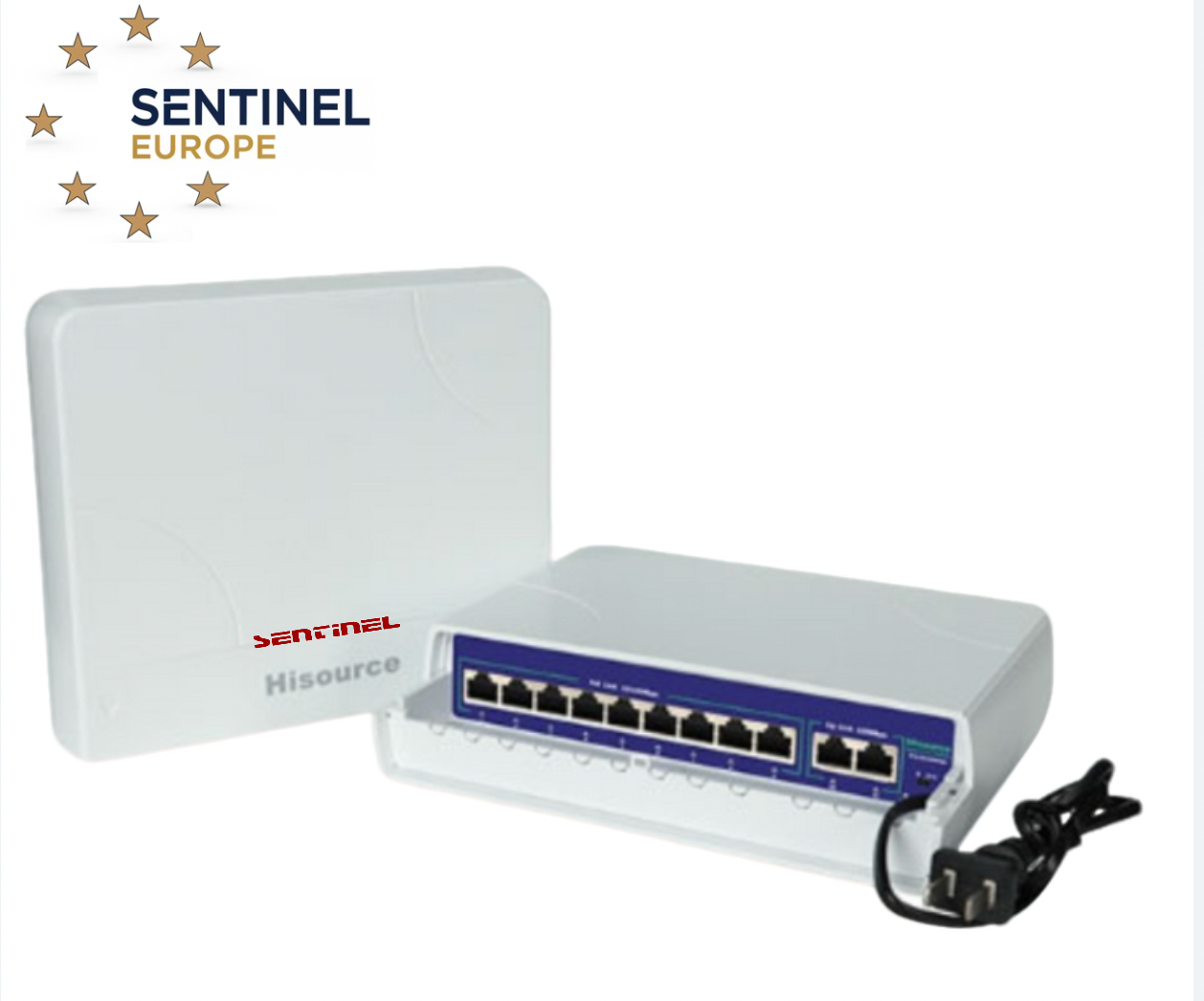

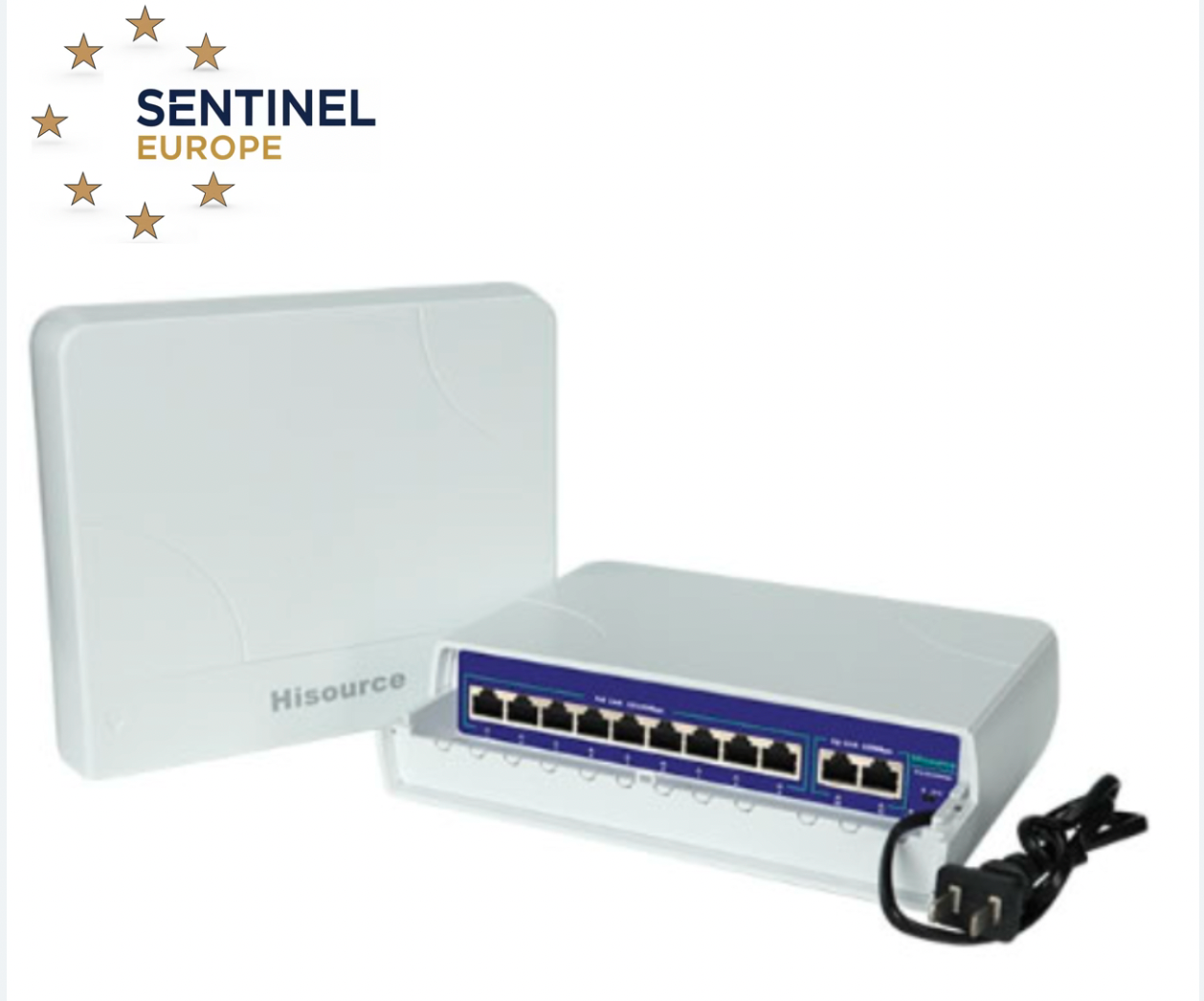

Outdoor Waterproof 10-Port Gigabit PoE Switch with 8 Port PoE8*10/100Mbps RJ45 port（support POE+） 2*10/100/1000Mbps RJ45 uplink port The whole power is 120W，each port max. power supply reached 30W The POE port supports the priority mechanism.、 Rain-proof function in the outdoor Support wall mounting, pole mounting, etc.

Excellent port performance

Supply 8*10/100Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port.

Supply 2*10/100Mpbs RJ45 uplink port.

All ports supported by MDI/MDIX auto flip and self-negotiation. Support IEEE802.3X

Full-duplex and backpressure for half-duplex mode.

Network Standard：IEEE 802.3、IEEE 802.3u、IEEE 802.3x

Port:8*10/100/1000Mbps RJ45 port

POE power:8pcs 10/100Mbps RJ45 port support POE+;The whole power is 120W;Each port max.

power supply reached 30W

POE Connection:Both1/2+、3/6- and 4/5+、7/8- End-span

Performance:Store and forward;MAC address table 4k;Switching capacity16Gbps

Forwarding Rate:10BASE-T:14880PPS/port;100BASE-tx ： 148800pps/port;1000BASE-tx ：

1488000pps/port

Port Function:Power priority mechanism, fast and forward, MAC automatic;learning and aging

IEEE802.3X Full-duplex and backpressure for half-duplex mode

Environment:Operating Temperature：-10℃ - -55℃

Power:Built in power base board;Input：110-220V，50HZ，Output：DC52V±5% 1.5A; ≤78W

Weight:0.85KG:

Size: 206mm×172mm×48mm(L×W×H)
