WIFI WLAN system SentinelEurope

Model Nº: 915MHz Supper

915MHz Supper WIFI WLAN systems Product description IEEE802.11AH is a large-connection IOT technology protocol designed by the 802.11 protocol suite to enter the IoT market. IEEE802.11AH is a new wireless protocol IEEE802.11AH is a large-connection IOT technology protocol designed by the 802.11 protocol suite to enter the IoT market.

IEEE802.11AH is a new wireless protocol used in WLAN systems in the frequency band below 1GHz. Suitable for industrial automation, Security monitoring, Internet of Things and other industries. Such as security video surveillance, drone wireless image transmission, sensor network smart meters, Sensors and smart payment link, hotspot coverage expansion and cellular network diversion.

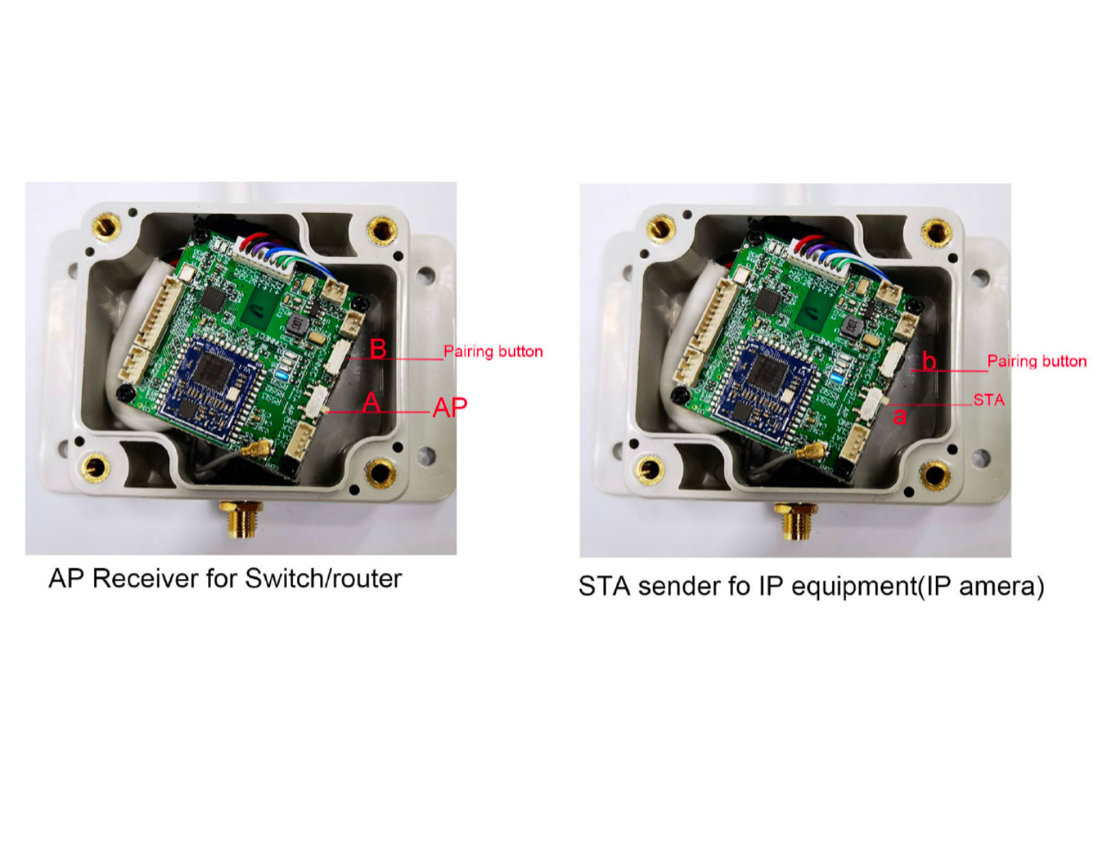

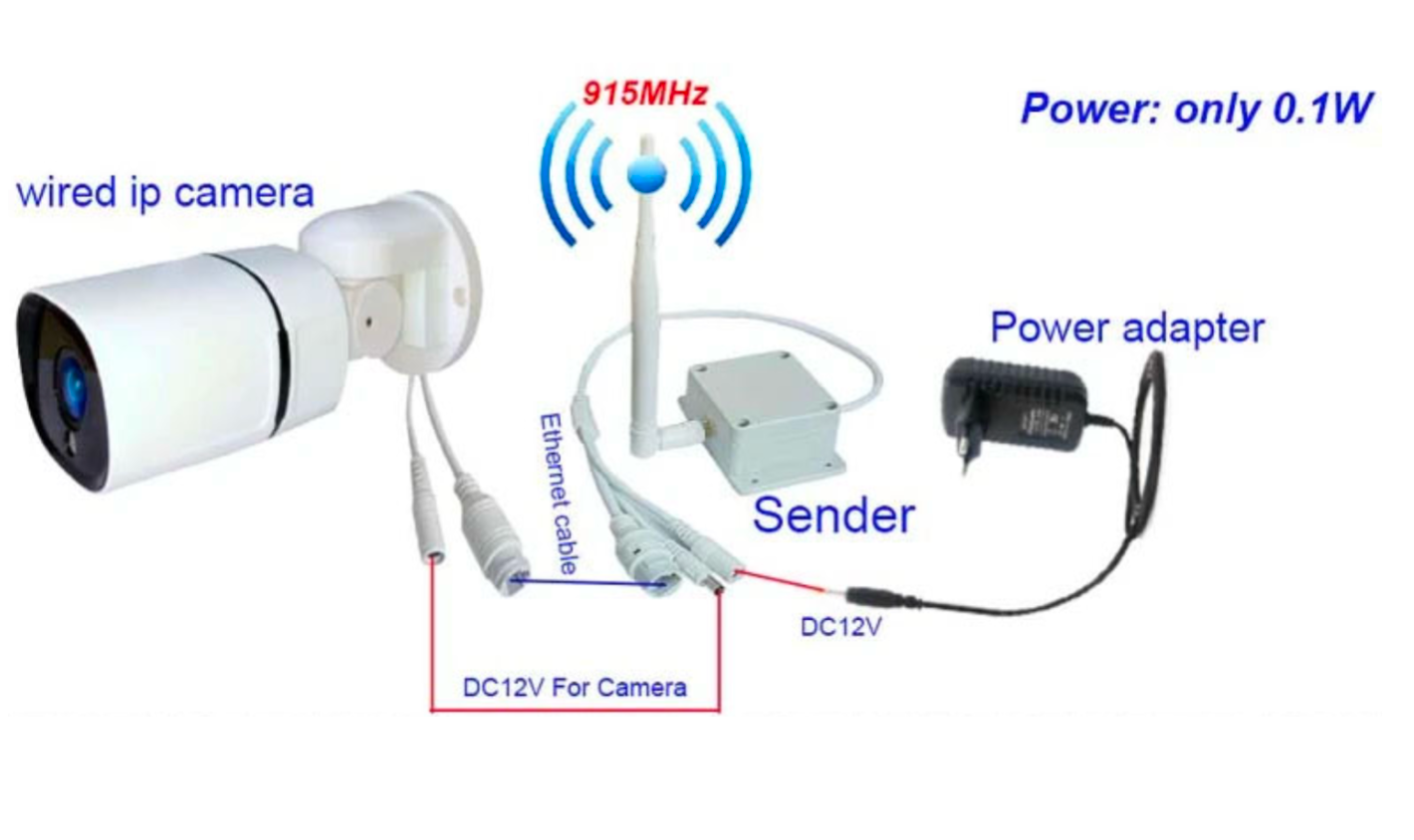

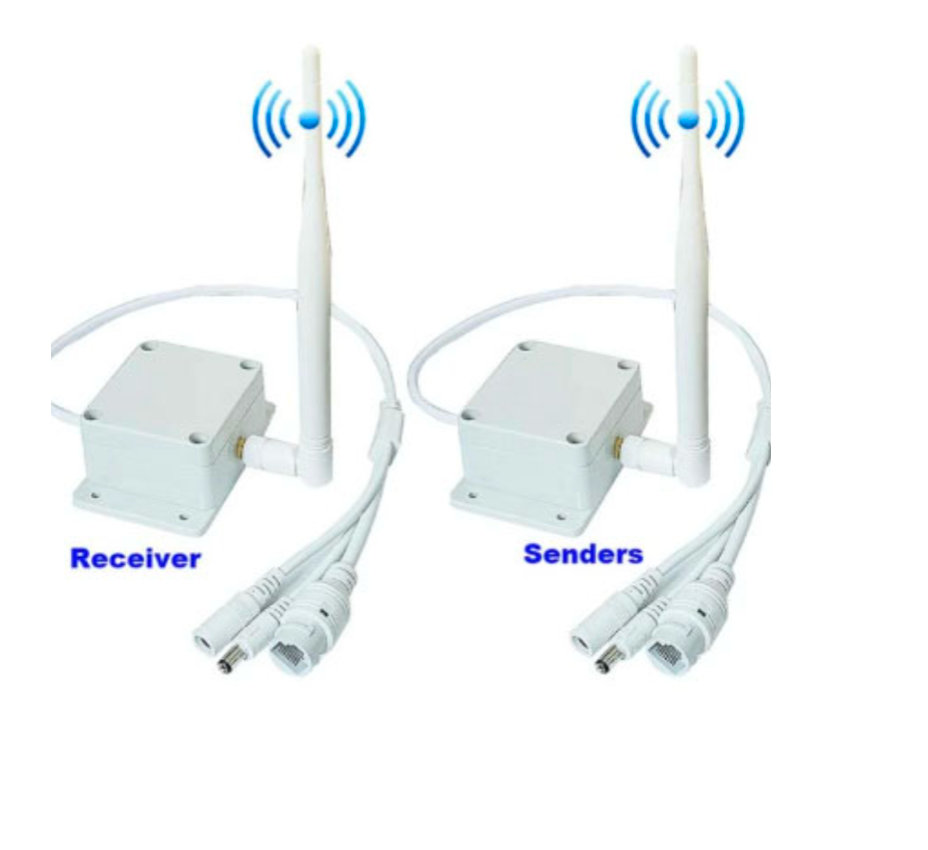

This is a new wireless transmission equipment package, divided into two parts: AP Send and AP Receiver. And can be freely matched, a receiver can receive up to 4 sender signals at the same time. which can transmit Ethernet equipment within 100MB, it can transmit up to 1000 meters in the open and unobstructed. If there are obstacles or devices with large network traffic, the transmission distance may be reduced. It is worth mentioning that even if there are obstacles, the device can be transmitted in a surround mode. For example: if you place a transmitter on the 1st floor, you can use the receiver on the 8th floor to receive network signals (it depends on the number of windows). The equipment uses a transmission frequency of 915MHz, which has the characteristics of long transmission distance and strong anti-interference ability. Using an encryptionalgorithm, other wireless devices cannot search for the device's signal, so it is hidden and safe. The product uses a 360-degree omnidirectional antenna design, so you don't need to adjust the position of the transmitter and receiver. Easy to install and use.

Working frequency: 910 - 930MHz (Working center frequency 915MHz).

Spectrum bandwidth: 1M, 2M, 4M, 8M, 16M

Maximum rate: 32.5Mbps

Gain: TBD

Horizontal lobe width: 360°

Vertical lobe width: TBD

Standing wave ratio: <1.5

Impedance: 50R

Working temperature: -40-60 degrees Celsius

Antenna power: 20±2dBm MCS7

Maximum power consumption: 10mA@DC12V
