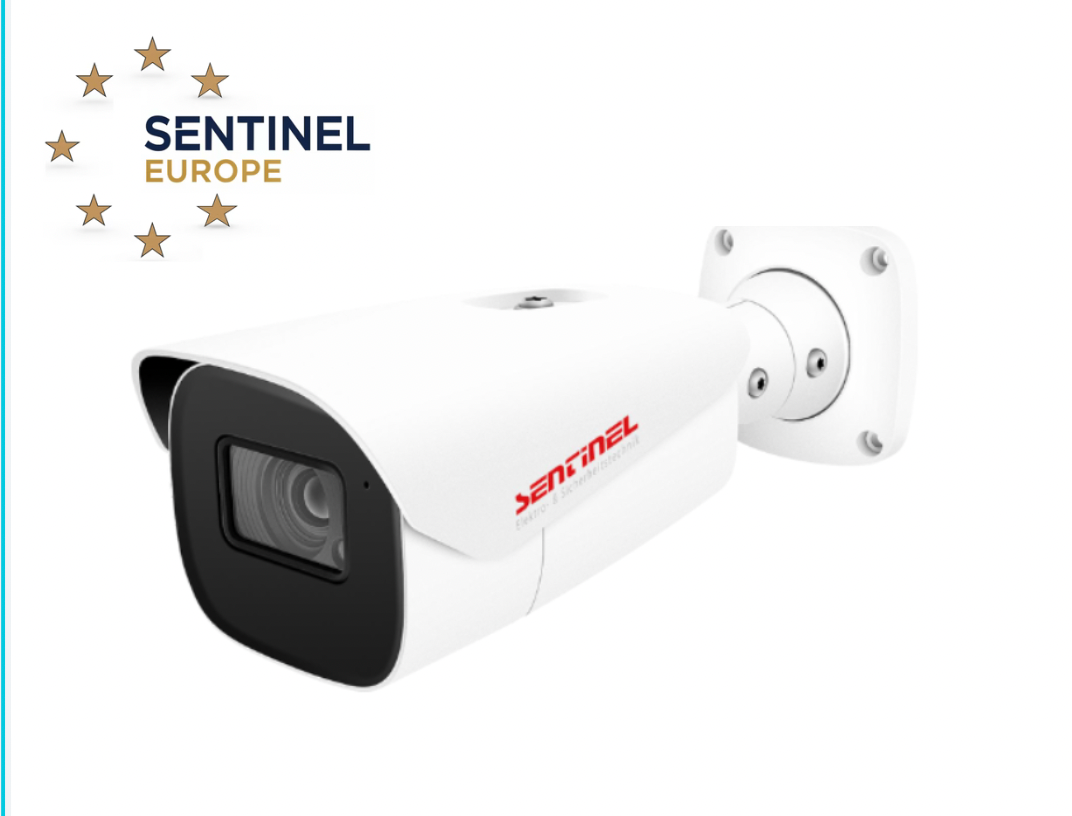

Special Bullet Camera SentinelEurope

Model Nº: YC-9443A3BH-LR

4MP HD License PlateRecognition BulletNetworkCamera

4MP (2592 × 1520 ) @30fps

Support H265+/H264+/H265/H264/MJPEG coding

ICR auto switch, true day/night

Motorized lens

3D DNR, true WDR, HLC, BLC and ROI coding

Built-in micro SD card slot, up to 256GB

DC12V/AC24V/PoE power supply

Support three streams

IP67

Support mobile surveillance by smart phones with iOS and Android OS

Support license plate detection and recognition.

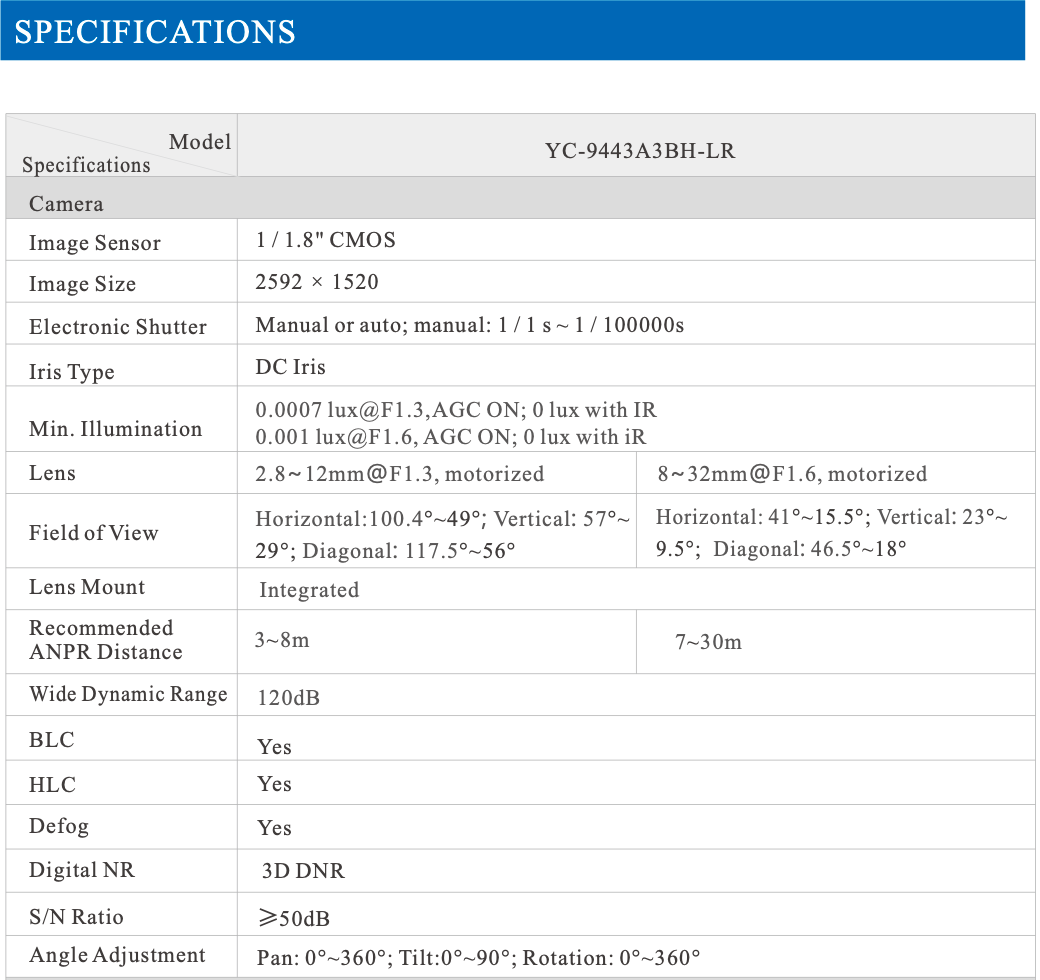

SPECIFICATION:

Camera:

Image Sensor.: 1 / 1.8" CMOS

Image Size: 2592 × 1520

Electronic Shutter: Manual or auto; manual: 1 / 1 s ~ 1 / 100000s

Iris Type: DC Iris

Min. Illuminatio: 0.0007 lux@F1.3,AGC ON; 0 lux with IR

                            0.001 lux@F1.6, AGC ON; 0 lux with iR

Lens: 2.8~12mm@F1.3, motorized. 8~32mm@F1.6, motorized

FieldofView: Horizontal:100.4º-49 ;Vertical: 57°-29°;Diagonal:117º-56

                     Horizontal:41º-15.5º;Vertical:23º9.5º;Diagonal:46.5º-18º;

Recommended ANPR Distance : 3 8m -7 30m

Wide Dynamic Range: 120dB

BLC: Yes

HLC: Yes

Defog: Yes

Digital NR: 3D DNR

S/N Ratio: ≥50dB

Angle Adjustment Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°

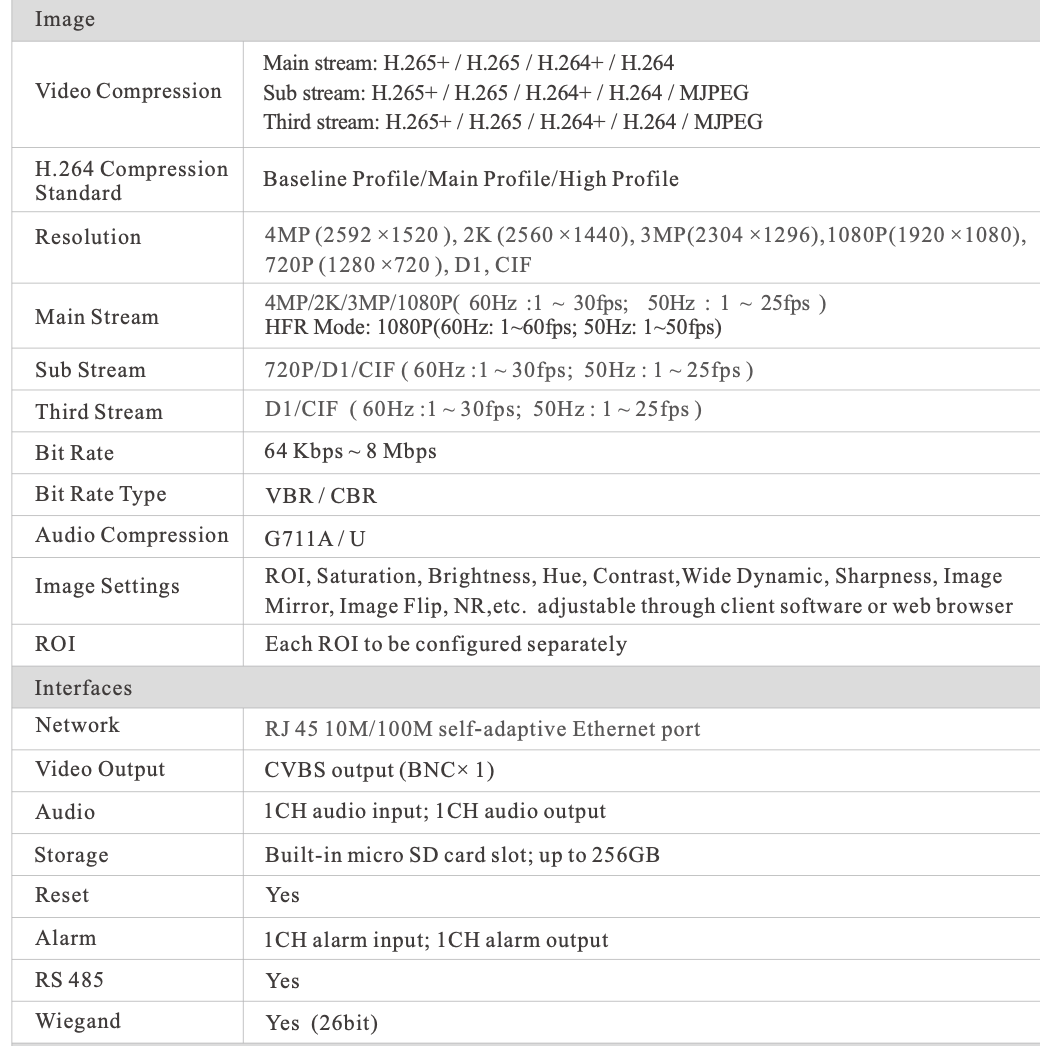

Video Compression:

Main stream: H.265+ / H.265 / H.264+ / H.264

Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPE

H.264 Compression Standard: Baseline Profile/Main Profile/High Profile

Resolution: 4MP (2592 ×1520 ), 2K (2560 ×1440), 3MP(2304 ×1296),1080P(1920 ×1080),720P (1280 ×720 ), D1, CI

Main Stream: 4MP/2K/3MP/1080P( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps ) HFR Mode: 1080P(60Hz: 1~60fps; 50Hz: 1~50fps

Sub Stream: 720P/D1/CIF ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps )

Third Stream

D1/CIF: ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps )

Bit Rate: 64 Kbps ~ 8 Mbps

Bit Rate Type: VBR / CBR

Audio Compression: G711A /

Image Settings: ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR,etc. adjustable through client software or web browser

ROI: Each ROI to be configured separately.

INTERFACES

Network: RJ 45 10M/100M self-adaptive Ethernet port

Video Output: CVBS output (BNC× 1)

Audio: 1CH audio input; 1CH audio output

Storage: Built-in micro SD card slot; up to 256GB

Reset: Yes

Alarm: 1CH alarm input; 1CH alarm output

RS 485: Yes

Wiegand Yes (26bit)

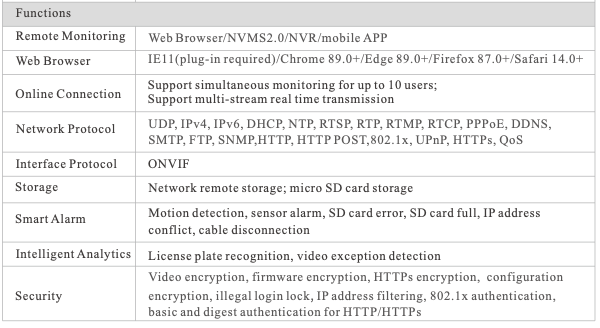

Functions

Remote Monitoring: WebBrowser/NVMS2.0/NVR/mobile APP

Web BrowserI: E11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Online Connection:Support simultaneous monitoring for up to 10 users;

                                 Support multi-stream real time transmission



Network Protocol:UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP,           RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, HTTP POST,802.1x, UPnP, HTTPs, QoS

Interface Protocol: ONVIF

Storage: Network remote storage; micro SD card storage

Smart Alarm:Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection

Intelligent Analytics: License plate recognition, video exception detection

Security: Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegalloginlock,IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs.

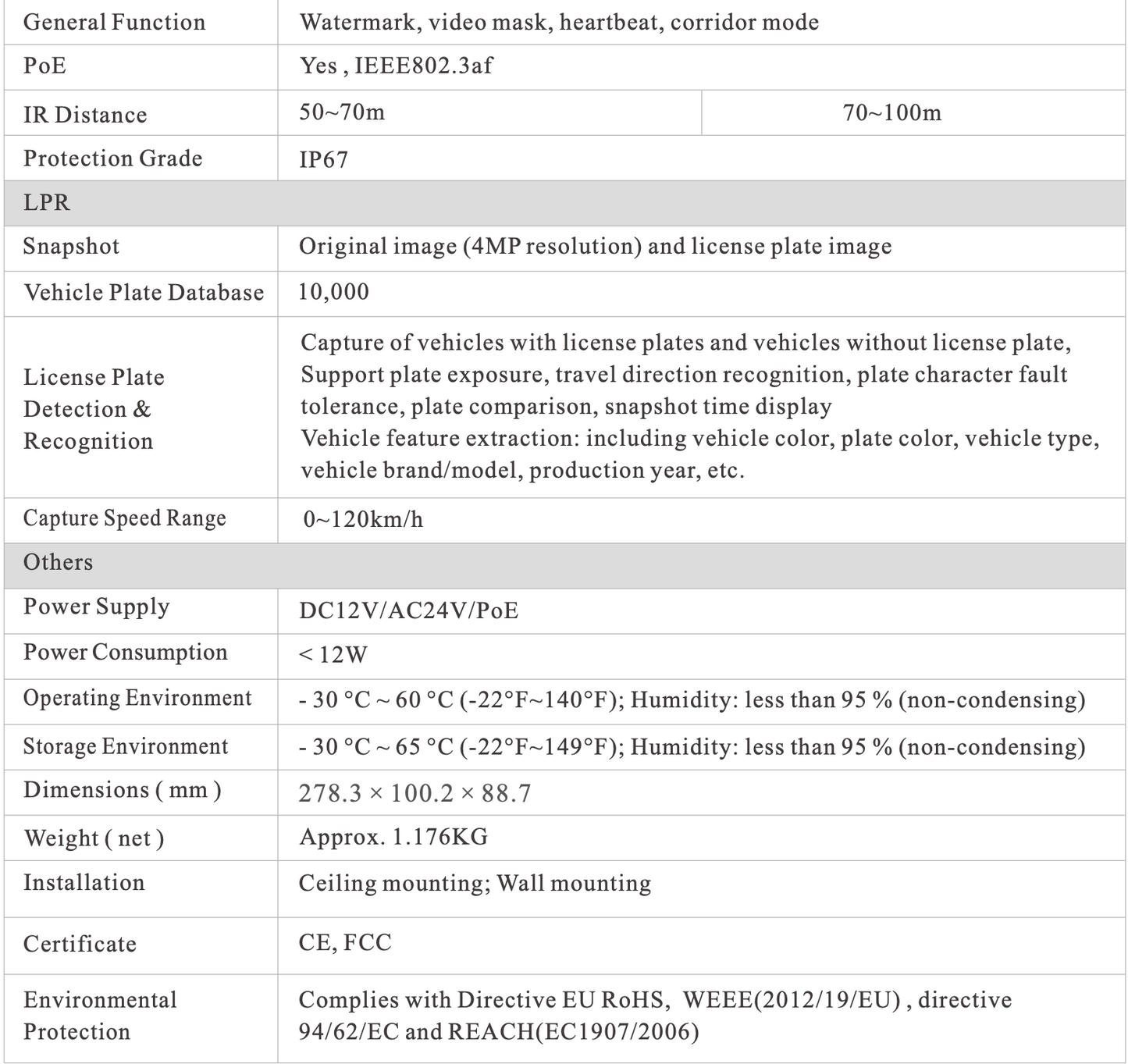

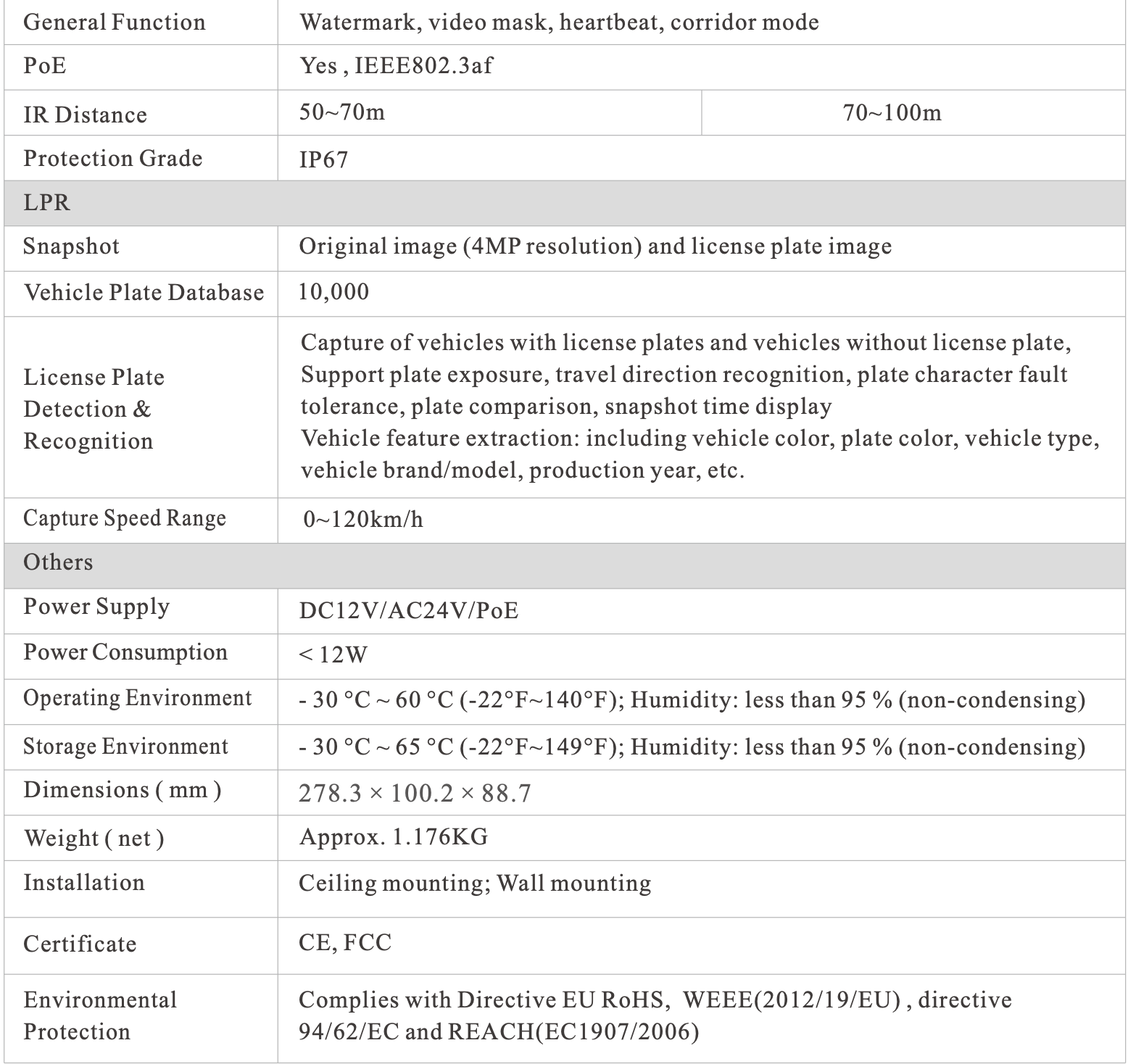

GeneralFunction: Watermark, video mask, heartbeat, corridor mode

PoE: Yes, IEEE802.3af

IR Distance: 50-70m

Protection Grade: IP67

LPR:

Snapshot: Original image (4MP resolution) and license plate image

Vehicle Plate Database:

10,000

License Plate Detection & Recognition

Capture of vehicles with license plates and vehicles without license plate, Support plate exposure, travel direction recognition, plate character fault tolerance, plate comparison, snapshot time display Vehicle feature extraction: including vehicle color, plate color, vehicle type, vehicle brand/model, production year, etc.

Capture Speed Range: 0~120km/h

Power Supply: DC12V/AC24V/PoE

Power Consumption: < 12W

Operating Environment: - 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)

Storage Environment: - 30 °C ~ 65 °C (-22°F~149°F); Humidity: less than 95 % (non-condensing)

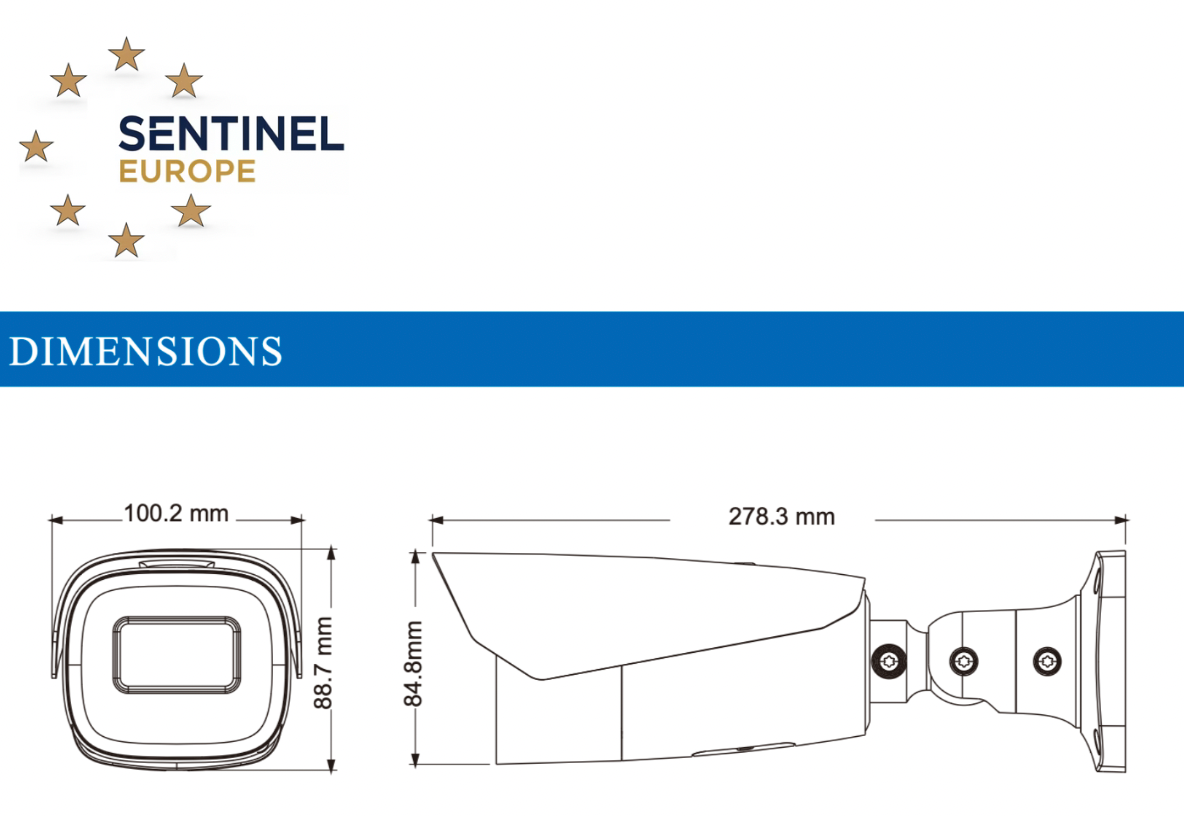

Dimensions ( mm ):278.3x100.2x88.7

Weight ( net ): Approx. 1.176KG

Installation: Ceiling mounting; Wall mounting

Certificate: CE, FCC

Environmental Protection:

Complies with DirectiveEU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
